Author: Subject: Kawasaki ZX14R / ZZR1400 engine and differential length?
Winston Todge

posted on 9/4/19 at 08:37 PM Reply With Quote
Kawasaki ZX14R / ZZR1400 engine and differential length?

Hey all,

Could someone measure the total length of their ZX14R install and chain diff if they have used it?

I'm trying to fit a setup similar to this into a Toyota iQ rear end... I think I am way out in space unfortunately.

The space behind the driver's seat is 700mm total and the engine is 420mm of that, while requiring the drive shafts exit roughly in the centre of the wheel centres, I think there isn't a chance.

I'm looking at a similar diff to this from Westgarage Engineering...

https://chaindrivediff.co.uk/product/ib5atb-chaindrive-lsd-er4-pivot/

Any advice would be great.

Ta,

Chris.

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
wylliezx9r

posted on 10/4/19 at 12:19 PM Reply With Quote
Nothing technical to add but I have seen an hayabusa motor in the back of a smart car so it makes me think it must be possible.

[Edited on 10/4/19 by wylliezx9r]





I spent a lot of money on booze, birds and fast cars. The rest I just squandered.
George Best

View User's Profile E-Mail User View All Posts By User U2U Member
minitici

posted on 10/4/19 at 12:22 PM Reply With Quote

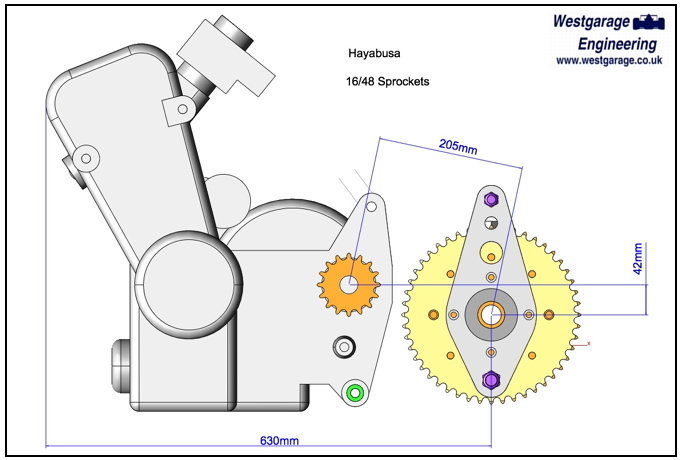

I've fitted chain drives down to about 205mm between sprocket centers.

This one was a Hayabusa with a 16T sprocket and 48T differential sprocket.

I have dimensioned sketches of the IB5ATB with pivot mount and ER4 electric reverse if you PM me.
Doug.


[Edited on 10/4/19 by minitici]

View User's Profile Visit User's Homepage View All Posts By User U2U Member
russbost

posted on 10/4/19 at 12:48 PM Reply With Quote
Approx 750/800mm total from front of headers to rear of chainwheel/starter motor for electric reverse (ZZR 1400) - seems very similar to dig. above for the 'Busa





Furore Formula Car - the only two seater modern Formula Car lookalike. I no longer run Furore Products or Furore Cars Ltd, but would still highly recommend them for Acewell dashes, projector headlights, dominator headlights, indicators, mirrors etc, best prices in the UK! Take a look at http://www.furoreproducts.co.uk/ or find more parts on Ebay, user names furoreltd & furoreproducts, discounts available for LCB users.
Don't forget Stainless Steel Braided brake hoses, made to your exact requirements in any of around 16 colours. http://shop.ebay.co.uk/furoreproducts/m.html?_dmd=1&_ipg=50&_sop=12&_rdc=1

NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member   russbost 's Aim
Winston Todge

posted on 12/4/19 at 08:03 AM Reply With Quote
Thanks for the responses people.

I'm thinking that trying to get the engine and differential / reverse one behind each other just isn't going to work with the space I've got...

[img][/img]

Looking at how the smart conversions achieve it and they tend to stack the engine above the differential and use a jack shaft to the take the drive out and down to drive the diff below the engine. This shortens the whole install a heap.

I'm looking at fabricating / sourcing something like these from the Smartzuki website...

[img]https://photos.app.goo.gl/3zZHTSA9FanmGfo46[/img]

Anyone know if there are any suppliers of the Smart bike conversion drivetrains around?

Ta,

Chris.


[Edited on 12-4-19 by Winston Todge]

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
Winston Todge

posted on 12/4/19 at 08:14 AM Reply With Quote
PS. Does anyone know why I can't post pictures hosted by third parties?!

i.e. the [img][/img] code isn't working above in my post.

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
minitici

posted on 12/4/19 at 09:04 AM Reply With Quote
quote:
Originally posted by Winston Todge
PS. Does anyone know why I can't post pictures hosted by third parties?!

i.e. the [img][/img] code isn't working above in my post.


It is because that is a google created link not a photo.

I can't see any way of linking to the original .jpg from the google album.

Think you will need to try another 3rd party hosting site.

View User's Profile Visit User's Homepage View All Posts By User U2U Member
minitici

posted on 12/4/19 at 09:15 AM Reply With Quote
I've made output shaft extensions for Smart Car conversions.



View User's Profile Visit User's Homepage View All Posts By User U2U Member
