Author: Subject: Hazard Wiring is there a flaw in this ?
ken555

posted on 23/2/16 at 11:57 PM Reply With Quote
Hazard Wiring is there a flaw in this ?



Can anyone see a flaw in this ?

Seems to be the simplest way I can think of keeping the MOT tester happy, and making the wiring simple.

The buzzer grounds thru the brake lights, so when sitting at a junction, you can put your foot on the brake and the buzzer gets 12V at each side and so is quiet, then when you start moving again, it beeps to remind you to cancel the indicators, the dash light is there as a secondary reminder.

I could use a bridge rectifier in the middle rather than 4 diodes, it needs to power 2x 21w bulbs at the rear, and 2 x 5W bulbs at the front, and one dash bulb/buzzer. so say 60W total, thats 5 Amps, so a KBPC601 should do the trick.

[Edited on 23-2-16 by ken555]

[Edited on 23-2-16 by ken555]






View User's Profile Visit User's Homepage View All Posts By User U2U Member
SteveWalker

posted on 24/2/16 at 12:35 AM Reply With Quote
How about using a 2-pole changeover switch for the hazards? One pole can switch the power supply to the bottom relay between the switched and permanent 12V, while the other can switch pin 49a of the same relay between the column switch and the bridge rectifier. No need for the top relay then.

Don't you need a specific hazard warning light on the dash though? If so, a lamp between the input to the bridge rectifier and 0V would do.

View User's Profile View All Posts By User U2U Member
ken555

posted on 24/2/16 at 01:08 AM Reply With Quote
quote:
Originally posted by SteveWalker
How about using a 2-pole changeover switch for the hazards?
Don't you need a specific hazard warning light on the dash though? If so, a lamp between the input to the bridge rectifier and 0V would do.


Like this ?


Using this switch that matches the rest.

Mot tester manual, 1.4 - page 2 says
quote:

The hazard warning lamp "tell-tale" maybe a separate light or the same as the indicator "tell-tale". However , it must be a flashing light.



So looks like I've covered that base.

[Edited on 24-2-16 by ken555]

[Edited on 24-2-16 by ken555]






View User's Profile Visit User's Homepage View All Posts By User U2U Member
TheGecko

posted on 24/2/16 at 02:58 AM Reply With Quote
Tell me if I'm misreading what you're doing but, if the buzzer is finding ground through the brake lights, they're going to flash in time with the indicators while your foot is off the brake.

Dominic


[Edited on 24/2/2016 by TheGecko]

View User's Profile Visit User's Homepage View All Posts By User U2U Member
ReMan

posted on 24/2/16 at 07:57 AM Reply With Quote
quote:
Originally posted by TheGecko
Tell me if I'm misreading what you're doing but, if the buzzer is finding ground through the brake lights, they're going to flash in time with the indicators while your foot is off the brake.

Dominic


[Edited on 24/2/2016 by TheGecko]

This is my one concern the rest is fine either way
Will depend on the spec of the buzzer I expect but it doesn't look good practice?





www.plusnine.co.uk
∙،. ˘≈ﺣ

View User's Profile Visit User's Homepage View All Posts By User U2U Member   ReMan 's ICQ status
ken555

posted on 24/2/16 at 09:37 AM Reply With Quote
quote:
Originally posted by TheGecko
Tell me if I'm misreading what you're doing but, if the buzzer is finding ground through the brake lights, they're going to flash in time with the indicators while your foot is off the brake.

Dominic


[Edited on 24/2/2016 by TheGecko]


The current through the buzzer is so low, nothing happens in real life.
I have that currently working, its just the hazards that's the new(ish) bits.

My road car (a Toyota yaris) has the tell-tell wired across both sets of indicators, so it earths through the unused indicator circuit, same principle.






View User's Profile Visit User's Homepage View All Posts By User U2U Member
z2000

posted on 24/2/16 at 12:04 PM Reply With Quote
If I understand the diagram correctly as it stands, I *think* that pressing the brake would send power through the buzzer AND through the dash light (in series) so you'd get a low sounding buzz and a dim dash light.

Nothing would flash because of the right hand pair of diodes preventing and current travelling to the left side of the circuit?

All of this would be in parallel to your brake light so you shouldn't see too much of an effect in it's brightness?

Edit: Also to add on the other part of the discussion, using the indicators or hazards will send power through the buzzer AND brake lights (in series) so your buzzer will not sound as loud and your brake lights will come on dimly?

Or I could be talking rubbish....

Perhaps just earth the buzzer somewhere else?

Henry

[Edited on 24/2/2016 by z2000]

[Edited on 24/2/2016 by z2000]





If it isn't broken; take it apart and fix it! Build PhotoBlog:
http://z2000.co.uk

View User's Profile Visit User's Homepage View All Posts By User U2U Member
snowy2

posted on 24/2/16 at 07:03 PM Reply With Quote
Bit puzzled about a bridge rectifier in a dc circuit....there are much better ways of achieving the same goal....





sometimes you are the pigeon, most of the time the statue.

View User's Profile View All Posts By User U2U Member
ReMan

posted on 24/2/16 at 07:07 PM Reply With Quote
Nothing wrong with the B R its just 4 diodes serving a logic purpose





www.plusnine.co.uk
∙،. ˘≈ﺣ

View User's Profile Visit User's Homepage View All Posts By User U2U Member   ReMan 's ICQ status
ken555

posted on 24/2/16 at 07:23 PM Reply With Quote
quote:
Originally posted by ReMan
Nothing wrong with the B R its just 4 diodes serving a logic purpose


One unit instead of four, plus it comes with a handy mounting hole in it.

Oh and I can get them free.






View User's Profile Visit User's Homepage View All Posts By User U2U Member
gremlin1234

posted on 24/2/16 at 09:41 PM Reply With Quote
the first diagram does have one significant flaw,
if you have the hazards on, and leave an indicator on, with the ignition off, everything that is powered from the 'switched live' will be on in time with the flashers.
a simple solution to this is using just one flasher relay, powered from the permanent live; or to add another diode in the switched feed.

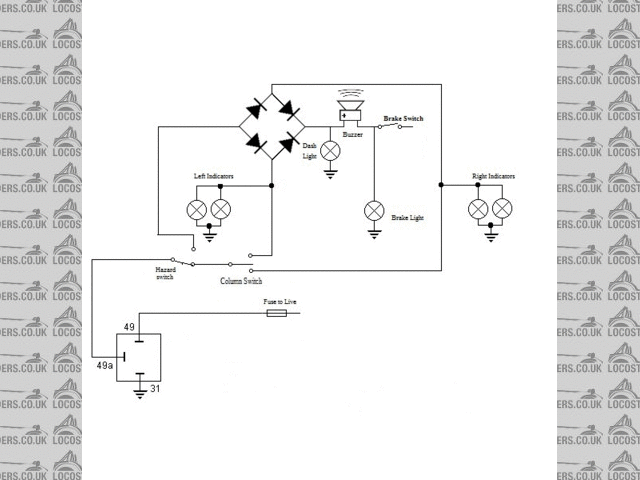

edit
hazard
hazard

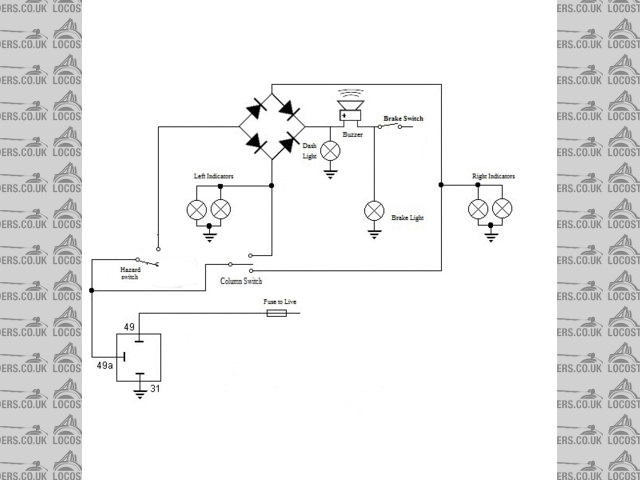

another edit, slightly simpler

hazard
hazard


[Edited on 24/2/16 by gremlin1234]

View User's Profile View All Posts By User U2U Member
02GF74

posted on 24/2/16 at 11:16 PM Reply With Quote
ok, I've not given this as much tough as you have, but why not use a conventional circuit with dpdt hazard, example pulled from web e.g.

fit the buzzer across the dash lamp.







Visit China. Meet the child that made your trainers.


View User's Profile View All Posts By User U2U Member
gremlin1234

posted on 25/2/16 at 01:03 AM Reply With Quote
quote:
Originally posted by 02GF74
ok, I've not given this as much tough as you have, but why not use a conventional circuit with dpdt hazard, example pulled from web e.g.

fit the buzzer across the dash lamp.


won't the dash lamp be on all the time apart from when its flashing?

View User's Profile View All Posts By User U2U Member
02GF74

posted on 25/2/16 at 02:11 PM Reply With Quote
Dont think so. Flasher unit has bimetallic strip that is heated when circuit is completed. It makes contact when cold so lights are on. Once heated, the strip bends so no conract, lights go off and strip cools .... until contact is made again and the cycle repeats.

Downside is indicators would flash when ignition is off, remedied by a relay from ignition switch.





Visit China. Meet the child that made your trainers.


View User's Profile View All Posts By User U2U Member
gremlin1234

posted on 25/2/16 at 05:05 PM Reply With Quote
quote:
Originally posted by 02GF74
Dont think so. Flasher unit has bimetallic strip that is heated when circuit is completed. It makes contact when cold so lights are on. Once heated, the strip bends so no contact, lights go off and strip cools .... until contact is made again and the cycle repeats.

Downside is indicators would flash when ignition is off, remedied by a relay from ignition switch.

when the strip is cold, it conducts, so the dash light would be on all the time, until it is heated enough by the indicators in use, when it would flash. - this could be solved by putting the dash lamp between the feed and output of the flasher unit, but would make adding a buzzer (that is silenced by the brake lights) difficult.

I don't see indicators working without the ignition on as a problem.

there is one other problem, that they will flash faster as hazards than just one indicator. - again not to much of a problem, - or an electronic flasher could be used.

edit:
after re-reading the thread...the post on 24/2/16 at 01:08 AM by ken555 (the op,) should just work too.

[Edited on 25/2/16 by gremlin1234]

View User's Profile View All Posts By User U2U Member
02GF74

posted on 25/2/16 at 06:09 PM Reply With Quote
Yes. Sorry. My bad. Good job someone is paying attention.

In fact i remember having this on my land rover, solution is either have two dash lamps, one for each side as on my kit car else use diodes as i did on my landrover, think it was similar to the BR as posted earlier.





Visit China. Meet the child that made your trainers.


View User's Profile View All Posts By User U2U Member
