Dry sump fixings - what are they are where from? Pics now attached!

Chaps

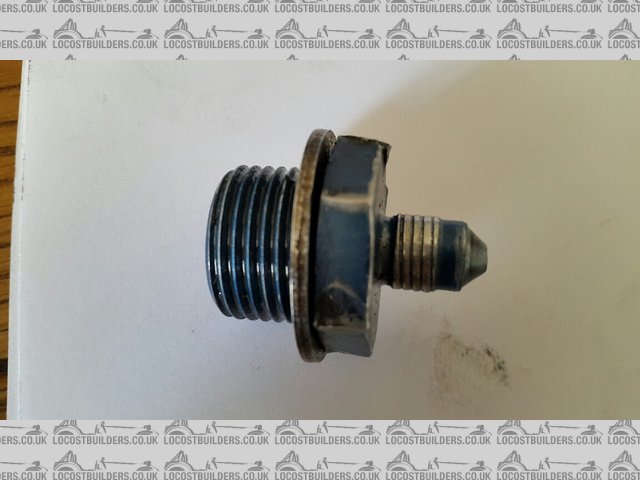

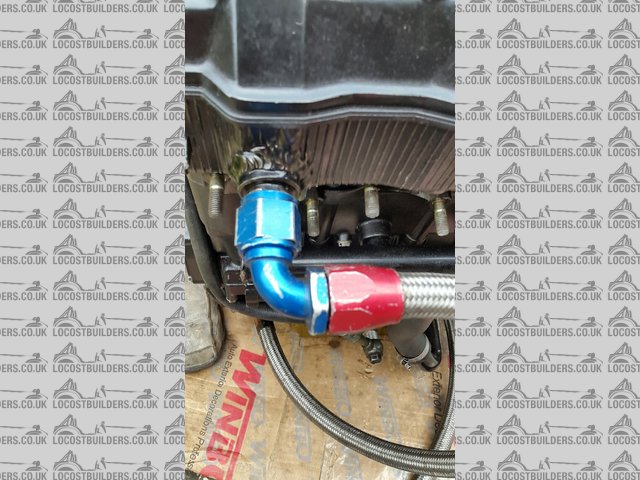

So I managed to punch a big hole in the block on my RPE Kawasaki zzr1100 motor in the back of my Radical. The good news (relatively) is that I have another motor to install. The bad news is that there is what appears to be a fixing for a return line welded into the head. My question is, where can I purchase this kind of fixing from? It measures 21.6 mm on the threaded section, which seemed a strange size to me...? Its just the weld in part I need, leaving a male threaded section for the right angle fixing to fasten to.

I also need an adapter for the oil pressure sender, it's 17.7mm and 8.5mm respectively on each side of the adapter, any ideas where to get that from too?

Description
Description


Description
Description


I will post some pics once I remember how to do that...

[Edited on 16/3/16 by carpmart]

[Edited on 16/3/16 by carpmart]





You only live once - make the most of it!


Radical Clubsport, Kwaker motor
'94 MX5 MK1, 1.8
F10 M5 - 600bhp Daily Hack
Range Rover Sport - Wife's Car
Mercedes A class - Son's Car

View User's Profile View All Posts By User U2U Member
pewe

posted on 16/3/16 at 06:47 PM Reply With Quote
Could do worse than talk to these guys linky
HTH.
Cheers, Pewe10

View User's Profile View All Posts By User U2U Member
phelpsa

posted on 16/3/16 at 07:21 PM Reply With Quote
One of these for the cylinder head probably:

AN -10 (AN10 -10 JIC AN 10) Male Aluminium Weld On Fitting Round Base

And the second fixing is probably an M18x1.5 to -3 AN/JIC.

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
redturner
Senior Builder






Posts 449
Registered 9/11/12
Member Is Offline

Photo Archive Go!
Building: Run 2 ltr Black Top in single seater race car.

posted on 16/3/16 at 10:17 PM Reply With Quote
They look like standard Goodrich fittings.....
View User's Profile E-Mail User View All Posts By User U2U Member
Tatey

posted on 17/3/16 at 12:52 PM Reply With Quote
I agree with phelpsa, the cylinder head will be a JIC AN-10 (also called dash 10) male weld on and the sump fitting will be an M18x1.5 to JIC AN-3 male to male union (also called dash 3). They are religiously used with race teams.

http://atecautotechnic.co.uk/en/ will have what you need, I don't have a catalogue handy for part numbers but give them a call and they'll be able to sort you out.

[Edited on 17/3/16 by Tatey]

View User's Profile View All Posts By User U2U Member
carpmart

posted on 29/3/16 at 07:03 AM Reply With Quote
Many thanks to all who replied and assisted with my questions..... I'm all sorted now!
