Author: Subject: front flexible brakehose
Dave J

posted on 10/5/05 at 03:35 PM Reply With Quote
front flexible brakehose

Hi all,

On full lock I find that the flexible brake pipes when 'bunched' touch the lower wishbone, obviously on opposite lock they are fine being straight. Would this be a problem with the SVA?

I've tried swivelling the banjo fitting to a different position, this just tends to push the pipe towards the wheel.

I can't see the pipe chaffing , as the wishbones are tubular and the pipes move with the suspension anyway.

Any thoughts on this??

Many thanks.

Dave

View User's Profile View All Posts By User U2U Member
Fifer

posted on 10/5/05 at 04:10 PM Reply With Quote
definate fail,
You would have to get them to be free of contact with anything

View User's Profile E-Mail User View All Posts By User U2U Member
Hellfire

posted on 10/5/05 at 04:28 PM Reply With Quote
We found twisting them to achieve a slight bend when in straight ahead. They then curl up when needing to reduce.






View User's Profile Visit User's Homepage View All Posts By User U2U Member
Northy

posted on 10/5/05 at 05:31 PM Reply With Quote
Or limit the steering lock





Graham


Website under construction. Help greatfully received as I don't really know what I'm doing!


"If a man says something in the woods and there are no women there, is he still wrong?"

Built 2L 8 Valve Vx Powered Avon

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
clbarclay

posted on 10/5/05 at 05:53 PM Reply With Quote
You could do like brake lines on the front of a cortina. From the caliper is a length of ridged line to a braket on the upright, where it then turns to flex brake line. The braket means the flex line can be positioned better to help avoid chafing.






View User's Profile View All Posts By User U2U Member
DorsetStrider

posted on 10/5/05 at 06:08 PM Reply With Quote
Cant you just like drive in straight lines?





Who the f**K tightened this up!

View User's Profile View All Posts By User U2U Member This User Has MSN Messenger   DorsetStrider 's Yahoo
NS Dev

posted on 10/5/05 at 08:37 PM Reply With Quote
again, questioning the wisdom of SVA advice, why can't they touch anything!?????

Where is the definition between "touch" and "mounted to"????????????????

Numerous production cars have the flexi lines clipped to wishbones etc!!! Surely this is "touching" but it would pass SVA, it must, it has passed type approval!!!!!!!

View User's Profile Visit User's Homepage View All Posts By User U2U Member   NS+Dev 's Aim
RazMan

posted on 10/5/05 at 09:58 PM Reply With Quote
A case of ' don't touch me unless you mean it?'......

.... or even 'one rule for you and one rule for me'







Cheers,
Raz

When thinking outside the box doesn't work any more, it's time to build a new box

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member   RazMan 's Aim   RazMan 's ICQ status This User Has MSN Messenger   RazMan 's Yahoo
Rorty

posted on 11/5/05 at 06:07 AM Reply With Quote
You think you have problems! With 48 degrees of steering and up to 24 inches of wheel travel in my off-road cars, keeping the brake flexies out of hams way is esential.
I would have thought Mr. SVA would encourage the flexies to be clipped to the wishbones.
The way I do it is cut a 15mm length of 3/8" rubber hose (it must be the fabric braided type...plain rubber hose will eventually split).
Take a Nylon cable tie and bend it into a "U" shape and place it over the flexie, and then slide the short piece of rubber hose over the ends of the cable tie.
All you have to do then is wrap the ends of the cable tie around the wishbone and pull it tight.
The piece of hose acts as a stand-off, yet still allows the hose to flex when required.





Cheers, Rorty.

"Faster than a speeding Pullet".

PLEASE DON'T U2U ME IF YOU WANT A QUICK RESPONSE. TRY EMAILING ME INSTEAD!

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
Dave J

posted on 11/5/05 at 10:16 AM Reply With Quote
Thanks guys for the advice and help. I'll try some of the suggestions ( not sure about driving in a straight line, might take out a few cows and sheep on the way)

This is not going to be easy as I have alot of lock and the flexibles as short as I dare. Can't really clip to anything unless this allows the flexies to slide within the clip......is this what you mean CLBARCLAY?

If I need to limit the rack travel, what's the best way to go about it? (SVA friendly)

What a bummer!!

Cheers Guys.

Dave

View User's Profile View All Posts By User U2U Member
clbarclay

posted on 11/5/05 at 01:19 PM Reply With Quote
I'm talking about having a lenght of rigid brake line from the caliper to a bracket on the upright, then the flexible pipe from the bracket to the rigid brake lines on the chassis.

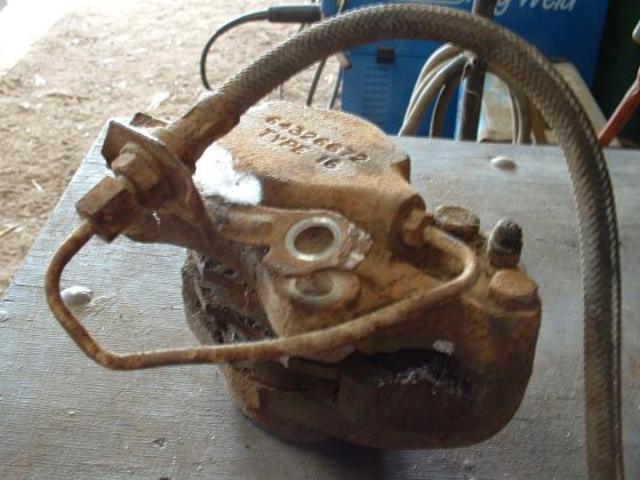

The photo below is of the ford example that came with my cortina uprights. Rescued attachment DSCF0126 small.JPG
Rescued attachment DSCF0126 small.JPG







View User's Profile View All Posts By User U2U Member
Dave J

posted on 11/5/05 at 02:14 PM Reply With Quote
Thanks for the picture, that's much clearer now. I may be able to do something similar (fingers crossed).

I had a word with my local friendly SVA centre about this problem. They say it is a common problem. They pointed out that VW (Golf/passat?) use a rubber donut on their flexible pipes that come into contact with bodywork to get round this and that is acceptable. The donut has to be permanent and not slide on the brake pipe. The discussion was very guarded from their point of view and any solution is open to interpretation, however the inference seemed to be that so long as the donut protects the brake pipe and is permanent and lasts at least 10 years, that would be acceptable.

My advice would be to check with your SVA officer.

With nylon spiral wrap plus a rubber donut protecting the pipe, there is no way that would wear in 50 years let alone 10.

Incidentally, nylon spiral wrap is not accepable on its own.

Cheers and thanks,

Dave.

View User's Profile View All Posts By User U2U Member
RoadkillUK

posted on 11/5/05 at 05:39 PM Reply With Quote
I did as CLBarclay has suggested.

Photo's below.










Roadkill - Lee
www.bradford7.co.uk
Latest Picture (14 Sept 2014)

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
Dave J

posted on 18/5/05 at 11:13 AM Reply With Quote
Thanks guys, I reckon I'll try the same. The pictures really helped.

Roadkill, did you not have a problem with your flexi becoming rather close to your wheel rim when turning left on full lock?

anyway thanks again and apologies for the late response.....not been too well lately

But ok now

Cheers,

Dave.

View User's Profile View All Posts By User U2U Member
Peteff

posted on 18/5/05 at 12:20 PM Reply With Quote
Mine almost touches the front wing support so I put a piece of rubber pipe round it. It passed SVA and MOT.





yours, Pete

I went into the RSPCA office the other day. It was so small you could hardly swing a cat in there.

View User's Profile View All Posts By User U2U Member
Mark Allanson

posted on 18/5/05 at 08:25 PM Reply With Quote

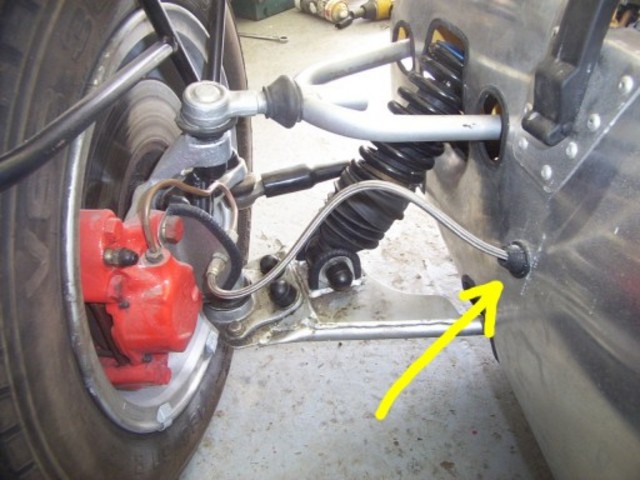

The pickie is a little out of date, but in my pre SVA frenzy, I have decided that my grommets in the side panels will fail the test.

I am going to replace them with electrical glands. These will clamp the now spiral wrapped flexies in position. The other advantageis that I will be able to modify the length of the flexy to make adjustments as required. Rescued attachment SVA Flexies.jpg
Rescued attachment SVA Flexies.jpg






If you can keep you head, whilst all others around you are losing theirs, you are not fully aware of the situation

View User's Profile Visit User's Homepage View All Posts By User U2U Member
DarrenW

posted on 20/5/05 at 10:16 AM Reply With Quote
quote:
Originally posted by Rorty
You think you have problems! With 48 degrees of steering and up to 24 inches of wheel travel in my off-road cars, keeping the brake flexies out of hams way is esential.
I would have thought Mr. SVA would encourage the flexies to be clipped to the wishbones.
The way I do it is cut a 15mm length of 3/8" rubber hose (it must be the fabric braided type...plain rubber hose will eventually split).
Take a Nylon cable tie and bend it into a "U" shape and place it over the flexie, and then slide the short piece of rubber hose over the ends of the cable tie.
All you have to do then is wrap the ends of the cable tie around the wishbone and pull it tight.
The piece of hose acts as a stand-off, yet still allows the hose to flex when required.


Do you have a pic?






View User's Profile E-Mail User View All Posts By User U2U Member This User Has MSN Messenger
Rorty

posted on 20/5/05 at 01:42 PM Reply With Quote
I don't think I have a pic of the brake flexies, but I'll have a look.





Cheers, Rorty.

"Faster than a speeding Pullet".

PLEASE DON'T U2U ME IF YOU WANT A QUICK RESPONSE. TRY EMAILING ME INSTEAD!

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
DarrenW

posted on 20/5/05 at 02:49 PM Reply With Quote
Ive just read your post again Rorty. I think ive sussed it now. The piece of hose will be at right angles to the wishbone that it is secured to and the brake line, creating a H-section / shape.
Has anyone done this and passed SVA?






View User's Profile E-Mail User View All Posts By User U2U Member This User Has MSN Messenger
Dave J

posted on 24/5/05 at 09:13 AM Reply With Quote
If I understand Rorty's description correctly, the short hose stands upright on the wishbone, the flexie is fixed to the top of the hose by the cable tie which passes through the hose and is pulled tight around the wishbone.

Iam not sure if the SVA chappie would be ok with this arrangement, as during my conversation with my local friendly SVA centre, he seemed to stipulate that so long as the remedy adheres pretty much with what a car manufacturer would do then you should be ok. He also mentioned the 10 year life expectancy.

Personally (just my opinion) and with all due respect to Rorty (he is after all only going off road with his car) I would be extremely wary about cable ties being used with any part of the braking system.

What does seem to be ok is the rubber donut idea where the donut is PERMANENTLY FIXED to the flexie in such a way that any contact with bodywork or wishbones touches the donut and not the flexie. As per VW Golf and Passat.

Cheers,

Dave.

View User's Profile View All Posts By User U2U Member
