Author: Subject: Show me your DIY Airbox
davidimurray

posted on 10/12/14 at 12:27 PM Reply With Quote
Show me your DIY Airbox

Picked up a cheap Pipercross viper air filter on ebay so I'm thinking about changing my sausage filter (which was tight inside the bonnet with the Pinto so will most likely be even tighter with the Duratec!) and making my own airbox and ducting to the filter/frontof the car.

Airbox will go on ZX6r carbs respaced to suit the engine.

Would be interesting to see what solutions people have come up with.

Cheers

Dave





Gallery 1 http://www.facebook.com/media/set/?set=a.116893465324.130778.601005324
Gallery 2 http://www.facebook.com/media/set/?set=a.245243755324.181913.601005324&l=a9831a9319
Gallery 3 http://www.facebook.com/media/set/?set=a.440671625324.232627.601005324&l=3f0d42c523
Gallery 4 http://www.facebook.com/media/set/?set=a.490098255324.297598.601005324&l=efb083b7df
Gallery 5 http://www.facebook.com/media/set/?set=a.10150244028550325.366987.601005324&l=583fd5cd3a
Gallery 6 http://www.facebook.com/media/set/?set=a.10150550640070325.430417.601005324&type=3&l=fe779b358c
Duratec Engine Swap https://www.facebook.com/media/set/?set=a.10152527759580325.1073741828.601005324&type=1&l=40aae5e72f " target="_blank"> https://www.facebook.com/media/set/?set=a.10152527759580325.1073741828.601005324&type=1&l=40aae5e72f

View User's Profile View All Posts By User U2U Member
Barkalarr
Contributor






Posts 910
Registered 14/3/12
Location Essex
Member Is Offline

Photo Archive Go!
Building: Caterham R300, Caterham Roadsport,Indy R1,Indy Zet

posted on 10/12/14 at 01:38 PM Reply With Quote

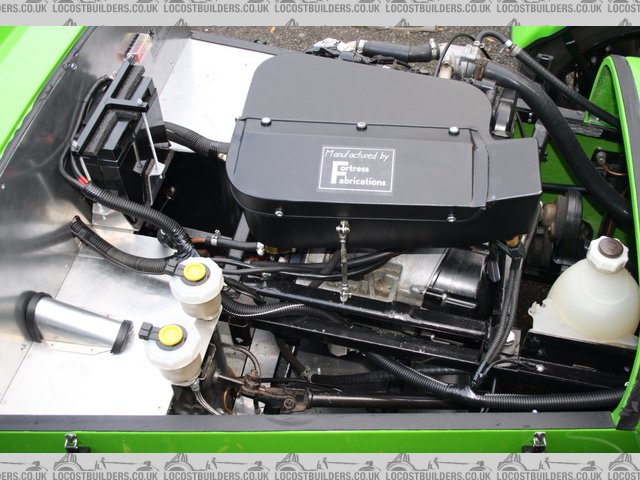

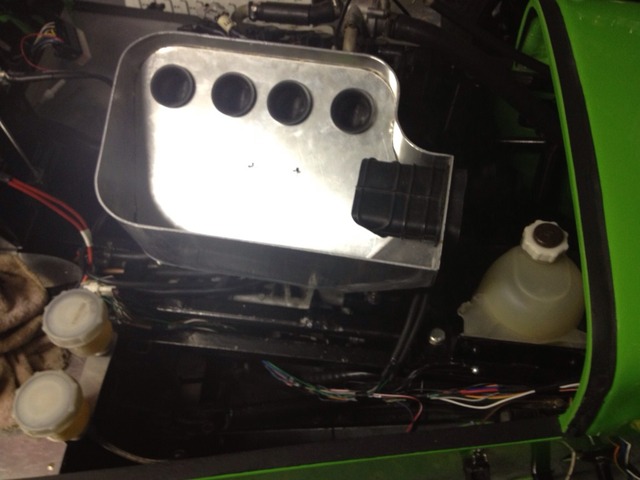

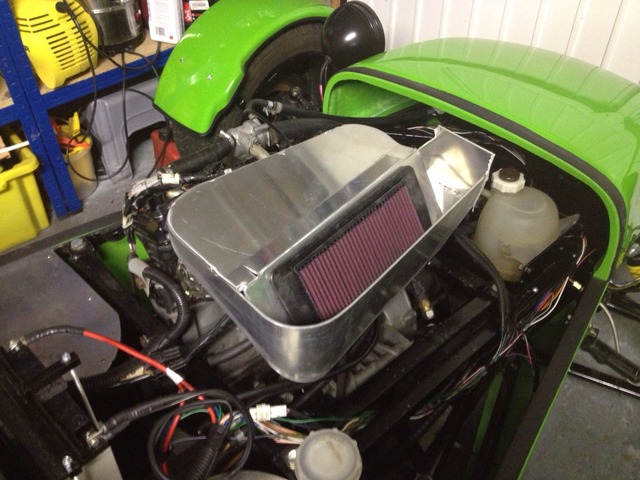

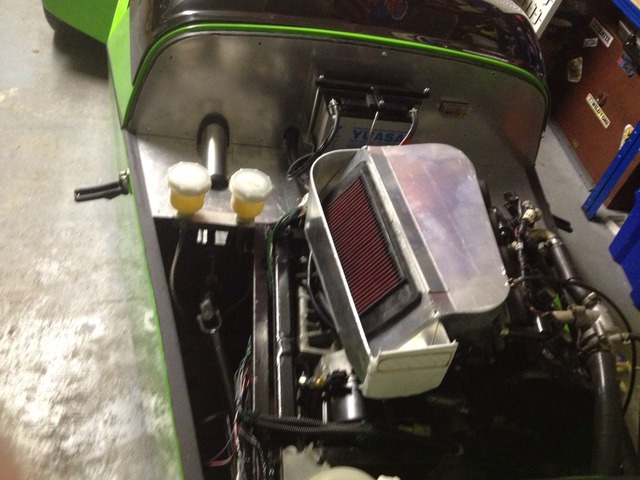

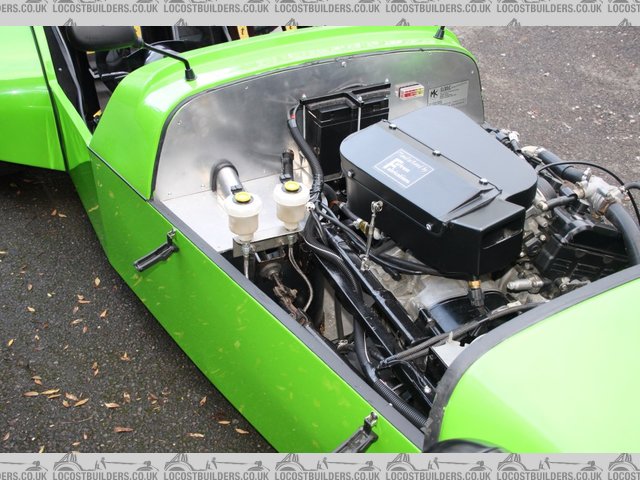

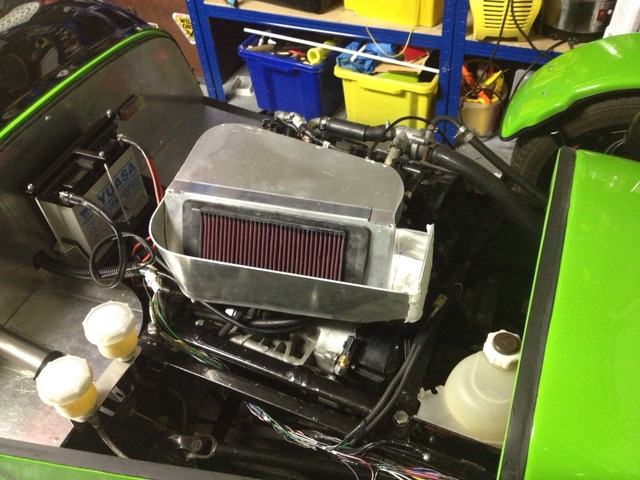

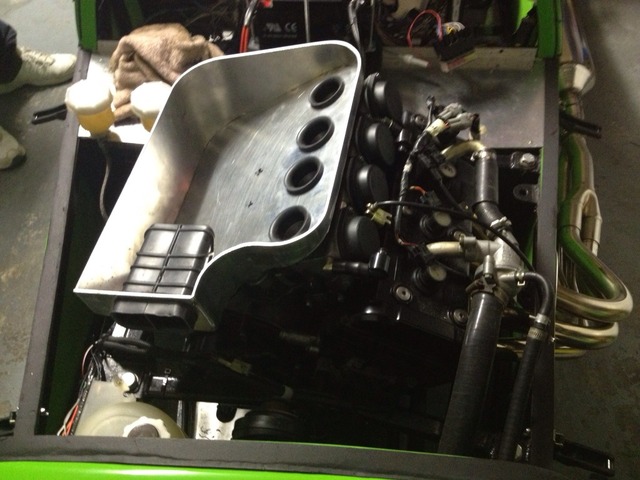

This was the airbox my mate for my R1 powered Indy. We didn't have enough space beneath the bonnet and the top of the engine to reverse the original airbox, so we made a new one which started out as a piece of card.
We used the original K&N air filter which came with the bike engine, and make all the inlet holes the same size as the original.

It's pretty handy when one of your mates is a sheet metal worker by trade and bloody handy with an aluminium welder.

I'm sure he'd take orders if I asked him very nicely....

Description
Description

Description
Description

Description
Description

Description
Description

Description
Description

Description
Description

Description
Description

View User's Profile View All Posts By User U2U Member
scutter

posted on 10/12/14 at 02:01 PM Reply With Quote

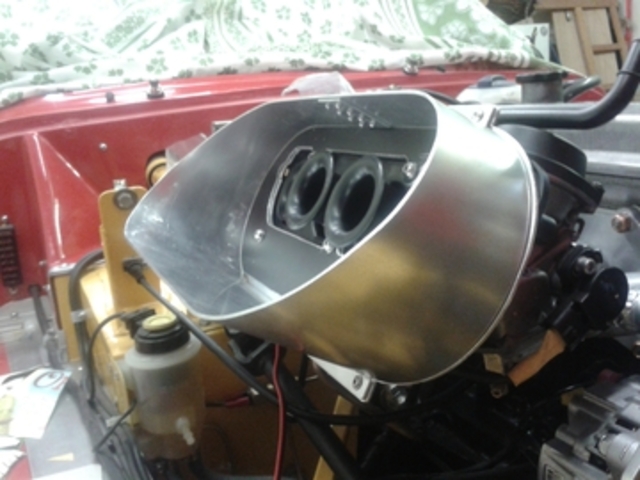

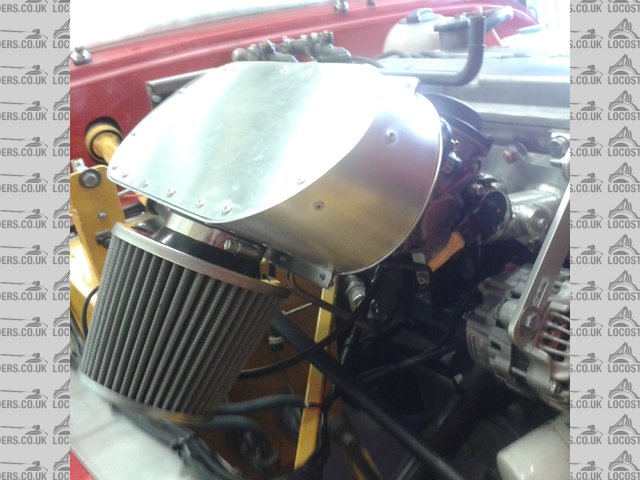

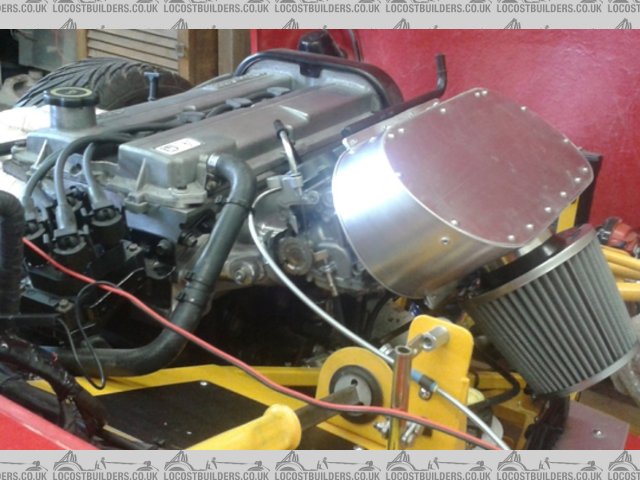

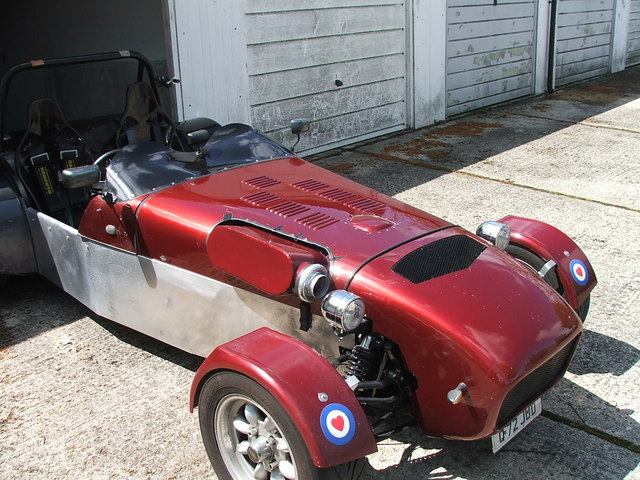

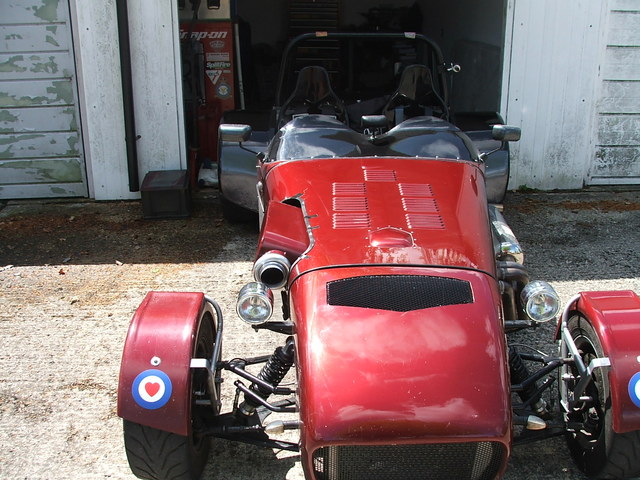

I was running a half under the bonnet/half out filter. Decided to just cut the bonnet for a full filter in the end. I used an old sausage filter plastic mount some alloy a friend welded and a PX600 filter.

Description
Description


Description
Description


Basic parts
Basic parts


Basic parts 2
Basic parts 2


Fitted
Fitted


Filter fitted
Filter fitted


Description
Description


Description
Description


ATB Dan.





The less I worked, the more i liked it.

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member   scutter 's Aim
mark chandler

posted on 10/12/14 at 03:39 PM Reply With Quote

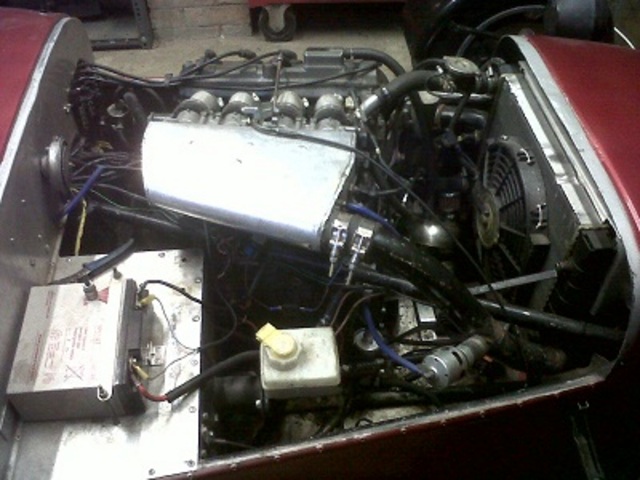

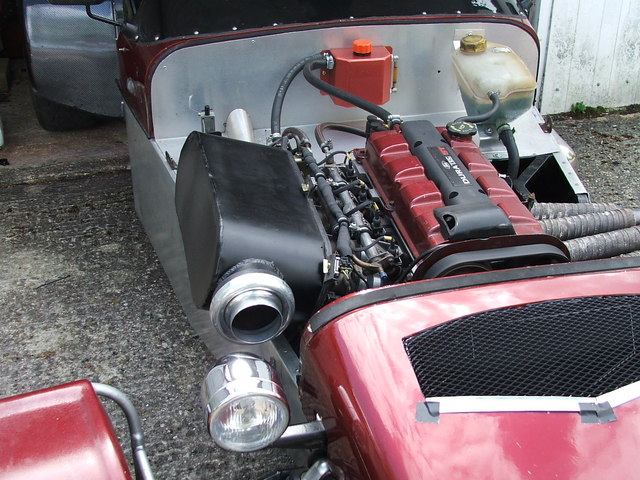

plenum 2
plenum 2

View User's Profile View All Posts By User U2U Member
davidimurray

posted on 10/12/14 at 07:16 PM Reply With Quote
Thanks everyone - some good inspiration there. I notice that they all look to be welded. Has anyone made one with just pop rivets?





Gallery 1 http://www.facebook.com/media/set/?set=a.116893465324.130778.601005324
Gallery 2 http://www.facebook.com/media/set/?set=a.245243755324.181913.601005324&l=a9831a9319
Gallery 3 http://www.facebook.com/media/set/?set=a.440671625324.232627.601005324&l=3f0d42c523
Gallery 4 http://www.facebook.com/media/set/?set=a.490098255324.297598.601005324&l=efb083b7df
Gallery 5 http://www.facebook.com/media/set/?set=a.10150244028550325.366987.601005324&l=583fd5cd3a
Gallery 6 http://www.facebook.com/media/set/?set=a.10150550640070325.430417.601005324&type=3&l=fe779b358c
Duratec Engine Swap https://www.facebook.com/media/set/?set=a.10152527759580325.1073741828.601005324&type=1&l=40aae5e72f " target="_blank"> https://www.facebook.com/media/set/?set=a.10152527759580325.1073741828.601005324&type=1&l=40aae5e72f

View User's Profile View All Posts By User U2U Member
Barkalarr
Contributor






Posts 910
Registered 14/3/12
Location Essex
Member Is Offline

Photo Archive Go!
Building: Caterham R300, Caterham Roadsport,Indy R1,Indy Zet

posted on 10/12/14 at 07:50 PM Reply With Quote

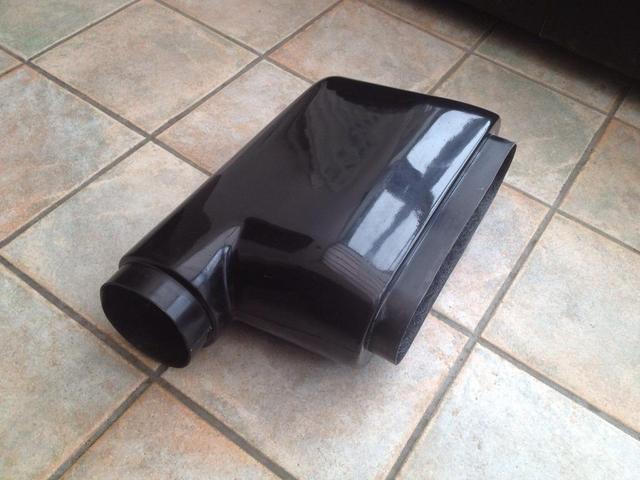

If you don't want anything welded, I can make you one of these :

Description
Description

View User's Profile View All Posts By User U2U Member
rick q

posted on 10/12/14 at 08:18 PM Reply With Quote

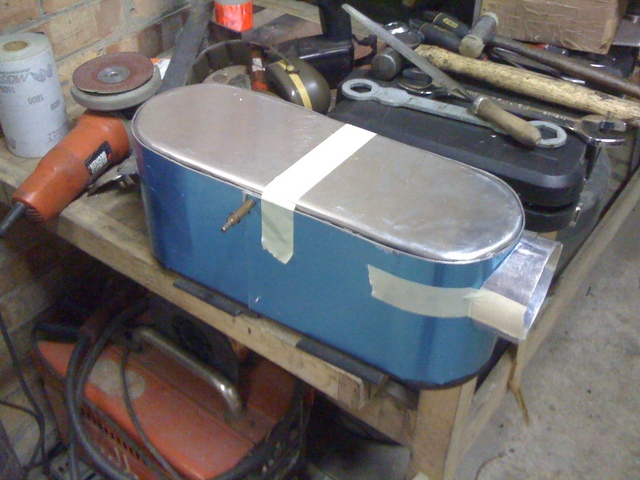

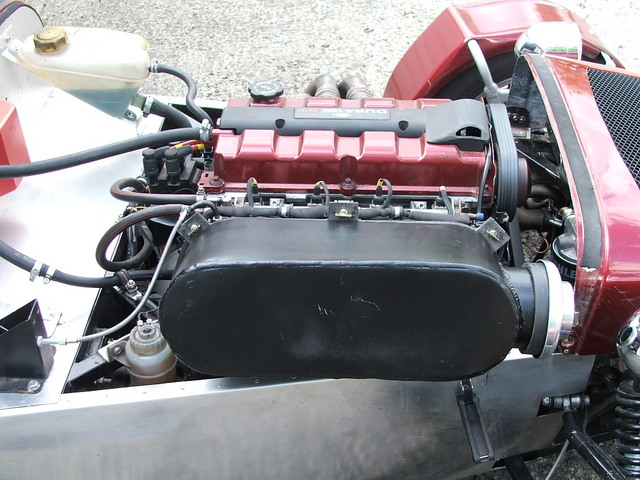

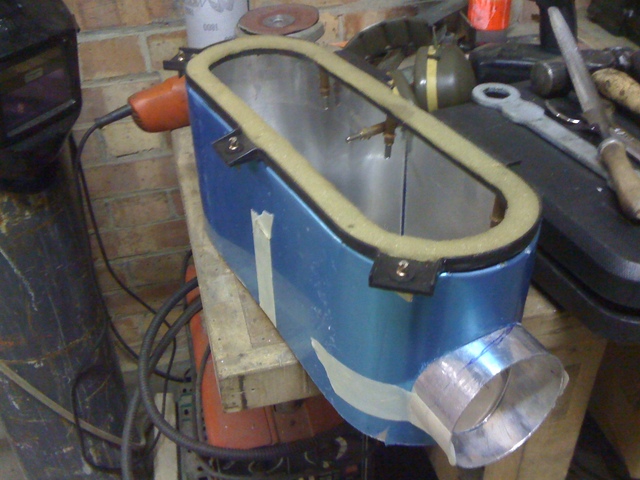

There ya go - fabricated with left over aluminium, a bought piece of filter media and bought ramtubes :-



and finished :-



[Edited on 10/12/14 by rick q]

View User's Profile View All Posts By User U2U Member
avagolen

posted on 10/12/14 at 09:42 PM Reply With Quote

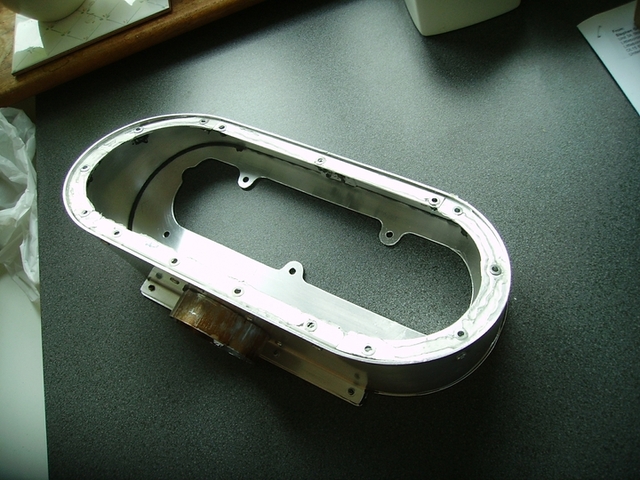

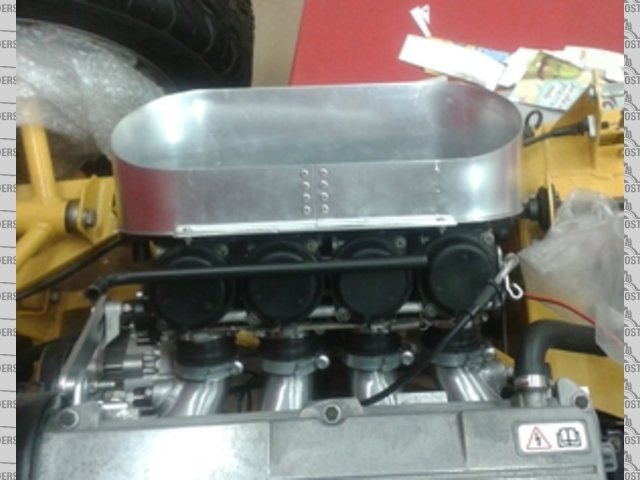

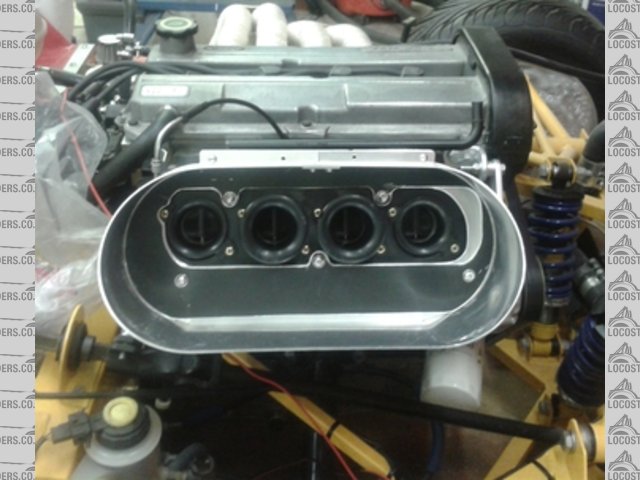

Hi, this is my airbox.

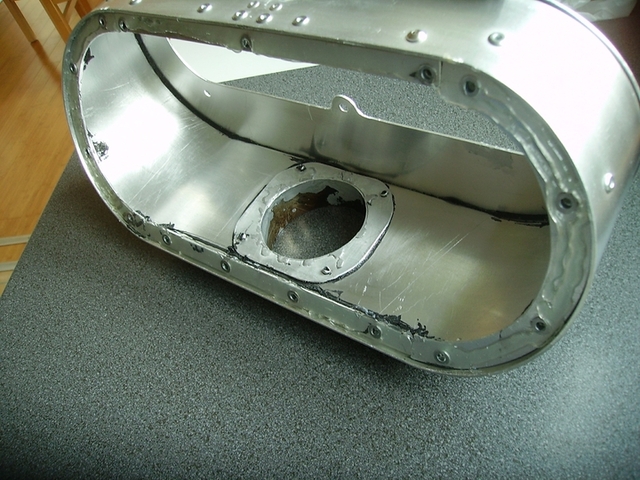

The side piece is riveted to the base and the 'lid' is screwed to a lip I mounted
inside the box with riveted angle brackets. All sealed inside with the sikaflex.

I created a silicon seal by putting a sheet of grease proof paper on the inside of the lid and
running a bead of silicone on the mounting lip. I fitted the lid loosely with it's screws and
left it for a couple of days. Once removed, the silicone had stuck to the aluminium lip
and the grease proof paper just pealed of leaving a flexible seal.

The filter can be remotely mounted if I find it necessary.

airbox1
airbox1


airbox2
airbox2


airbox3
airbox3


airbox4
airbox4


airbox5
airbox5


airbox6
airbox6


airbox7
airbox7


[Edited on 10/12/14 by avagolen]





The Answer for everything, but never the last word....

View User's Profile View All Posts By User U2U Member
davidimurray

posted on 11/12/14 at 06:58 PM Reply With Quote
Thanks everyone - got the grey matter churning now ...





Gallery 1 http://www.facebook.com/media/set/?set=a.116893465324.130778.601005324
Gallery 2 http://www.facebook.com/media/set/?set=a.245243755324.181913.601005324&l=a9831a9319
Gallery 3 http://www.facebook.com/media/set/?set=a.440671625324.232627.601005324&l=3f0d42c523
Gallery 4 http://www.facebook.com/media/set/?set=a.490098255324.297598.601005324&l=efb083b7df
Gallery 5 http://www.facebook.com/media/set/?set=a.10150244028550325.366987.601005324&l=583fd5cd3a
Gallery 6 http://www.facebook.com/media/set/?set=a.10150550640070325.430417.601005324&type=3&l=fe779b358c
Duratec Engine Swap https://www.facebook.com/media/set/?set=a.10152527759580325.1073741828.601005324&type=1&l=40aae5e72f " target="_blank"> https://www.facebook.com/media/set/?set=a.10152527759580325.1073741828.601005324&type=1&l=40aae5e72f

View User's Profile View All Posts By User U2U Member
Steve Hignett

posted on 12/12/14 at 07:45 AM Reply With Quote
I've made a couple of these myself, in 'glass, Ali and CF, but I have to say that apart from the height of it at the inlet being to short and weight of it ('cause I used to be a weight conscious freak!), that has to be one of the best air boxes I've seen...
Tell your mate he's done a bang up job with that! Especially as he probably "found" the bits of Ali too!
SH


quote:
Originally posted by Barkalarr
This was the airbox my mate for my R1 powered Indy. We didn't have enough space beneath the bonnet and the top of the engine to reverse the original airbox, so we made a new one which started out as a piece of card.
We used the original K&N air filter which came with the bike engine, and make all the inlet holes the same size as the original.

It's pretty handy when one of your mates is a sheet metal worker by trade and bloody handy with an aluminium welder.

I'm sure he'd take orders if I asked him very nicely....

Description
Description

Description
Description

Description
Description

Description
Description

Description
Description

Description
Description

Description
Description


View User's Profile Visit User's Homepage View All Posts By User U2U Member
HowardB

posted on 12/12/14 at 08:03 AM Reply With Quote
quote:
Originally posted by Barkalarr
If you don't want anything welded, I can make you one of these :

Description
Description



That I like

how much,...?





Howard

Fisher Fury was 2000 Zetec - now a 1600 (it Lives again and goes zoom)

View User's Profile View All Posts By User U2U Member
Dick Axtell

posted on 12/12/14 at 09:45 AM Reply With Quote
quote:
Originally posted by HowardB
quote:
Originally posted by Barkalarr
If you don't want anything welded, I can make you one of these :

Description
Description



That I like

how much,...?

+1. What are aperture dimensions?





Work-in-Progress: Changed to Zetec + T9. Still trying!!

View User's Profile Visit User's Homepage View All Posts By User U2U Member
Barkalarr
Contributor






Posts 910
Registered 14/3/12
Location Essex
Member Is Offline

Photo Archive Go!
Building: Caterham R300, Caterham Roadsport,Indy R1,Indy Zet

posted on 12/12/14 at 03:29 PM Reply With Quote
These are the dimensions - it's going to be between 80 and 100

Description
Description

View User's Profile View All Posts By User U2U Member
HowardB

posted on 12/12/14 at 03:57 PM Reply With Quote
I think that I shall need to do some CAD, cardboard aided design to see if that will fit under the Fury bonnet,... it would be going on a silvertop,.





Howard

Fisher Fury was 2000 Zetec - now a 1600 (it Lives again and goes zoom)

View User's Profile View All Posts By User U2U Member
Barkalarr
Contributor






Posts 910
Registered 14/3/12
Location Essex
Member Is Offline

Photo Archive Go!
Building: Caterham R300, Caterham Roadsport,Indy R1,Indy Zet

posted on 6/1/15 at 03:55 PM Reply With Quote
Chaps - have a look at this thread Here
View User's Profile View All Posts By User U2U Member
