High lift car ramps - from trailer?

I have been musing of late as I am away from home. Some time ago I built some high ( 350 mm ? ) car ramps but they were so cumbersome to move and store I eventually binned them. I am now thinking this was a mistake as I need to do some work on my MX5 outside and my combination of high lift jack and axle stands is more than a bit inconvenient. So I wondered whether I could build a couple triangular ( in side view ) towers to support my trailer ramps. The towers would be easy to move and store and the trailer ramps have a natural home. I am sure this is not an original idea but from anyone who has done it, or indeed those who have not, any advice would be appreciated.
View User's Profile E-Mail User View All Posts By User U2U Member
907

posted on 19/2/18 at 07:39 PM Reply With Quote
Like these ?

Paul G

long ramps
long ramps




I also have these

Description
Description



But I'd like one of these

On my wish list
On my wish list



[Edited on 19/2/18 by 907]





The one and only member of the Suttol Owners Club. Now also the MX5 Owners Club. A few more in that one.

View User's Profile View All Posts By User U2U Member
johnH20

posted on 19/2/18 at 08:49 PM Reply With Quote
Spot on 907 exactly that! ( First pic ).
View User's Profile E-Mail User View All Posts By User U2U Member
ianhurley20

posted on 19/2/18 at 10:31 PM Reply With Quote
Gosh Paul - I'm jealous - where did you get the first two from - I could use either at the moment?





My build blog http://ianhaynes20.wordpress.com IVA passed 3/10/16

View User's Profile View All Posts By User U2U Member
907

posted on 20/2/18 at 01:38 AM Reply With Quote
quote:
Originally posted by ianhurley20
Gosh Paul - I'm jealous - where did you get the first two from - I could use either at the moment?







The short answer is that I made both of them. The scissor lifts are my default lift system and will raise to 500mm.
They have had all sorts on them from an E30 BMW to the Lotus 21 in the pic, and naturally my own Suttol & MX5.
Last weeks customers pride & joy was a Variomatic Volvo.


A slightly smaller version of my home made effort is sold as a Motorbike Scissor Lift ( on eBay for £35 ish ) so a set
would be £140 or thereabouts. Rated at 500kg each 4 would lift a car. Comes with chassis props which could be handy.
Pop your axle stands under as well for a belt & braces approach.


Paul G

Description
Description






The one and only member of the Suttol Owners Club. Now also the MX5 Owners Club. A few more in that one.

View User's Profile View All Posts By User U2U Member
Angel Acevedo

posted on 20/2/18 at 01:58 AM Reply With Quote
quote:
Originally posted by 907
...

I also have these

Description
Description


...

[Edited on 19/2/18 by 907]

Coukld you post a pic of mechanism?
And Pivot point details?
Thanks in advance.
AA





Beware of what you wish.. for it may come true....

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
907

posted on 20/2/18 at 08:23 AM Reply With Quote
The pivots are just round bar, and there's an M16 high tensile threaded bar between the top two.


Can't take any better pics at the moment as there's an MX5 race car on them.



Pic from a previous thread. Middle one has its top lifted up to show the thread.








The one and only member of the Suttol Owners Club. Now also the MX5 Owners Club. A few more in that one.

View User's Profile View All Posts By User U2U Member
ianhurley20

posted on 20/2/18 at 09:11 AM Reply With Quote
quote:
Originally posted by 907

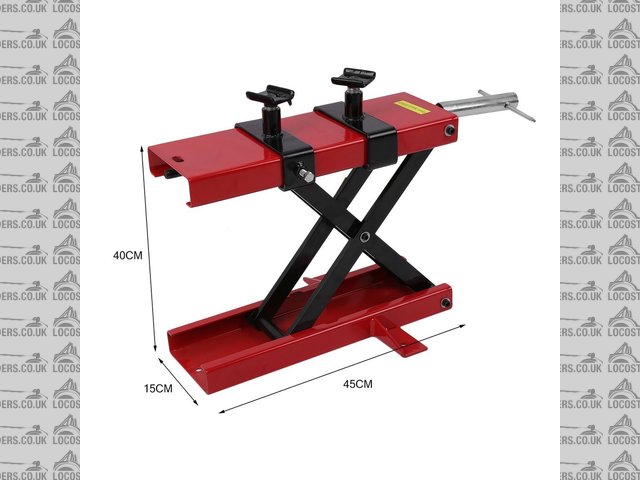

A slightly smaller version of my home made effort is sold as a Motorbike Scissor Lift ( on eBay for £35 ish ) so a set
would be £140 or thereabouts. Rated at 500kg each 4 would lift a car. Comes with chassis props which could be handy.
Pop your axle stands under as well for a belt & braces approach.


Paul G

Description
Description



Thanks Paul - found item 183039213708 on ebay £33.56 - will do the job well for me





My build blog http://ianhaynes20.wordpress.com IVA passed 3/10/16

View User's Profile View All Posts By User U2U Member
Angel Acevedo

posted on 20/2/18 at 05:55 PM Reply With Quote
quote:
Originally posted by 907
The pivots are just round bar, and there's an M16 high tensile threaded bar between the top two.


Can't take any better pics at the moment as there's an MX5 race car on them.



Pic from a previous thread. Middle one has its top lifted up to show the thread.





Thanks 907





Beware of what you wish.. for it may come true....

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
907

posted on 20/2/18 at 07:23 PM Reply With Quote
Owner of the race car called in to inspect.

I will return the car to him in the morning so will take a pic of a stand with the top removed.


Paul G





The one and only member of the Suttol Owners Club. Now also the MX5 Owners Club. A few more in that one.

View User's Profile View All Posts By User U2U Member
907

posted on 21/2/18 at 05:15 PM Reply With Quote
As promised, top off.

Paul G

edit to add:-
what looks like 3 washers on the far right is a thrust bearing.

Description
Description


[Edited on 22/2/18 by 907]





The one and only member of the Suttol Owners Club. Now also the MX5 Owners Club. A few more in that one.

View User's Profile View All Posts By User U2U Member
Angel Acevedo

posted on 22/2/18 at 02:31 AM Reply With Quote
Thank you very much...
Another side project is born...






Beware of what you wish.. for it may come true....

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
