Author: Subject: Sierra hub measurements - KPI, castor etc
danro

posted on 14/4/05 at 12:33 PM Reply With Quote
Sierra hub measurements - KPI, castor etc

Hi all

I have deviated from the standard book chassis in a few ways (sierra donor) which pushes me to check or possibly redesign the front wish bones a little.

What I'm after are the various angles involved with the hub, KPI, Castor etc.
If any of the CAD guys have already created a CAD drawing of the hub then this would probably have all that I need to ensure the correct positioning at the end of the wishbones.

Can anyone assist?

Many thanks

Danny






View User's Profile E-Mail User View All Posts By User U2U Member
James

posted on 14/4/05 at 12:37 PM Reply With Quote
This is the only diagram I've ever seen:

http://www.locostbuilders.co.uk/upload/sierra_upright.jpg

HTH,

James





------------------------------------------------------------------------------------------------------------

"The fight is won or lost far away from witnesses, behind the lines, in the gym and out there on the road, long before I dance under those lights." - Muhammad Ali

View User's Profile View All Posts By User U2U Member   James 's Aim
danro

posted on 15/4/05 at 08:28 AM Reply With Quote
Spot on!!

Thanks James






View User's Profile E-Mail User View All Posts By User U2U Member
jambojeef

posted on 15/4/05 at 10:21 PM Reply With Quote

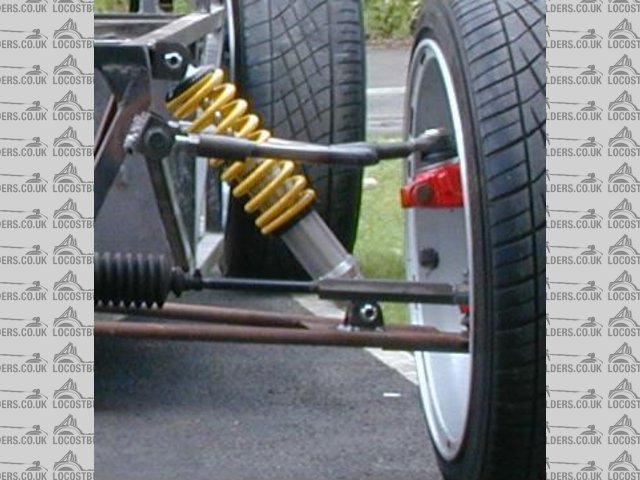

If it helps - when you come to make your top wishbones you'll need to angle your transit drag link end to get enough movement in bump and droop.

I went for about 10 degrees and mine turned out like this.

Hope that helps too! Rescued attachment front susp.JPG
Rescued attachment front susp.JPG

View User's Profile View All Posts By User U2U Member
danro

posted on 18/4/05 at 08:00 AM Reply With Quote
Brilliant. Thanks Jambojeef

Perfect timing too!
I'll be talking your advise as I had heard about this issue. Wasn't too sure exactly how to do it but your photo... speaks 1000 words.
Much appreciated.

Danny






View User's Profile E-Mail User View All Posts By User U2U Member
