Phoenix full cage
Hi guys, has anyone got any pics of a Phoenix with a full cage? Need some design inspiration ( having one made ) , now I have just hit 40 some self
preservation is finally kicking in....
|
|
|
|
|
adithorp
|
| posted on 21/3/13 at 10:57 PM |
|
|
Couple of pictures of Matts car...
"A witty saying proves nothing" Voltaire
http://jpsc.org.uk/forum/
|
|
|
SPYDER
|
| posted on 22/3/13 at 12:28 AM |
|
|
Here are some pics of our design...
Padding is the proper FIA spec stuff. Infills and sunscreen are carbon. In hindsight, the front needs to be a little lower.
|
|
|
jeffw
|
| posted on 22/3/13 at 06:15 AM |
|
|
quote:
Originally posted by adithorp
Couple of pictures of Matts car...
And Dan's car as well in the top shot  Both STM Phoenix
|
|
|
snakebelly
|
| posted on 22/3/13 at 09:43 AM |
|
|
Not a fury but similar is our Tiger GTA which we had Matt at Procomp do the cage for, lots of pictures here:
https://picasaweb.google.com/111529572187631903852/GTACage#
|
|
|
matt_gsxr
|
| posted on 22/3/13 at 09:59 AM |
|
|
I have an archive of phoenix photos at
https://plus.google.com/photos/104671818065472880232/albums/5494077681140815841
A few cages in there. Mostly STM ones like mine, but a few others.
Personally I am in two minds about my cage.
It is definitely a good thing for safety, but it does look like someone has dumped a child's climbing frame on what would have looked like a
pretty car.
|
|
|
snakebelly
|
| posted on 22/3/13 at 10:08 AM |
|
|
that was what we liked most about Procomps design for us, it seemed to suite the car without looking like it had been dropped on top of the body
|
|
|
adithorp
|
| posted on 22/3/13 at 10:25 AM |
|
|
quote:
Originally posted by jeffw
And Dan's car as well in the top shot Both STM Phoenix
Ah, couldn't remember his name.
I have to agree with Matt, a full cage does spoil the lines.
[Edited on 22/3/13 by adithorp]
"A witty saying proves nothing" Voltaire
http://jpsc.org.uk/forum/
|
|
|
jeffw
|
| posted on 22/3/13 at 10:40 AM |
|
|
Also they don't seem to have the side impact bars I would like to see.
|
|
|
minitici
|
| posted on 22/3/13 at 11:30 AM |
|
|

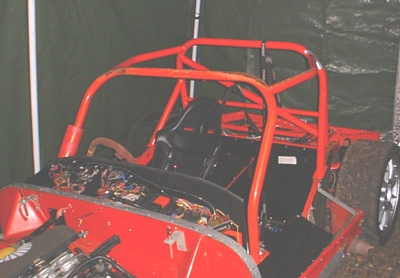

One I made for a Fury
[Edited on 22/3/13 by minitici]
|
|
|
Furyblade_Lee
|
| posted on 22/3/13 at 11:52 AM |
|
|
Cheers guys, got some inspiration there! Like parts of several, but none exactly! Think I know what I want now. I actually do have some side impact
bars for mine, bolt in but never fitted them, will do soon.
|
|
|
matt_gsxr
|
| posted on 22/3/13 at 12:35 PM |
|
|
quote:
Originally posted by jeffw
Also they don't seem to have the side impact bars I would like to see.
STM provided a separate side impact bar for the drivers side with mine.
If I were racing then I'd (carefully) fill the side pod with expanding foam which I think would be more effective.
Not sure it would meet the regulations though.
Matt
|
|
|
beaver34
|
| posted on 23/3/13 at 06:49 AM |
|
|
they look nice,
what do you use to fill the cage void in the middle and how is it attatched?
|
|
|
Furyblade_Lee
|
| posted on 23/3/13 at 10:35 AM |
|
|
The cage on the Red Fury looks nice, but i'd like the front hoop more curved and slightly lower than the back. Also I fancy two semi-circle top
hoops a-la the Caterham cages otherwise access will be tricky. Does not have to pass circuit racing regs at the mo so that should be adequate pour
moi.
|
|
|
SPYDER
|
| posted on 23/3/13 at 04:55 PM |
|
|
quote:
Originally posted by beaver34
they look nice,
what do you use to fill the cage void in the middle and how is it attatched?
Infill panels are thin carbon sheet fitted to small tabs on the cage with flanged button head screws.
|
|
|
minitici
|
| posted on 24/3/13 at 08:24 PM |
|
|
quote:
Originally posted by Furyblade_Lee
The cage on the Red Fury looks nice, but i'd like the front hoop more curved and slightly lower than the back. Also I fancy two semi-circle top
hoops a-la the Caterham cages otherwise access will be tricky. Does not have to pass circuit racing regs at the mo so that should be adequate pour
moi.
The cage in the red Fury replicated the cage in the original chassis which came to grief at the Doune Hillclimb.
The hoops stood up very well to a roll and slide upside down for about 50 metres.
On the replacement, we went for an even larger diameter main hoop and diagonal (50mm) so that the car would be eligible for any class (i.e. Sports
Libre as well as modified sports).
|
|
|
Heather
|
| posted on 28/3/13 at 01:43 PM |
|
|
quote:
Originally posted by jeffw
quote:
Originally posted by adithorp
Couple of pictures of Matts car...
And Dan's car as well in the top shot Both STM Phoenix
Whoohoo nice to see the old girl again
|
|
|
matt_gsxr
|
| posted on 25/5/13 at 03:42 PM |
|
|
I got bored of the full cage, so trimmed the front off so just have a braced bar now.
Prettier and saves 12kg.

cage_chop
