aeroluke
|
| posted on 19/9/08 at 08:33 PM |
|
|
Too complicated?
Does this (draft) chassis look too complicated to build as far as some of the angles between tubes goes?

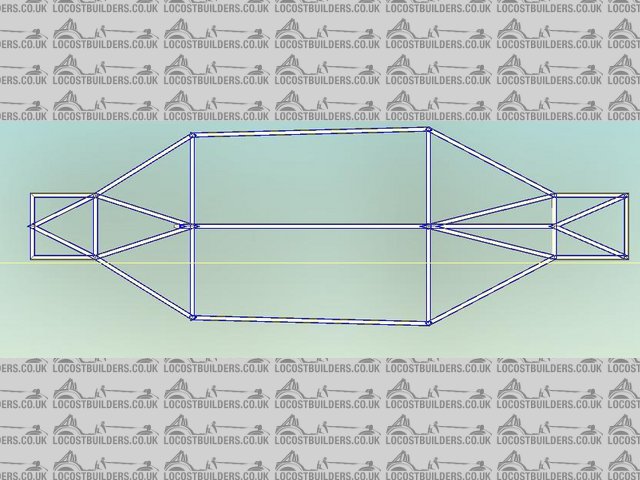

Bottom:

Bottom rails
Top:

top

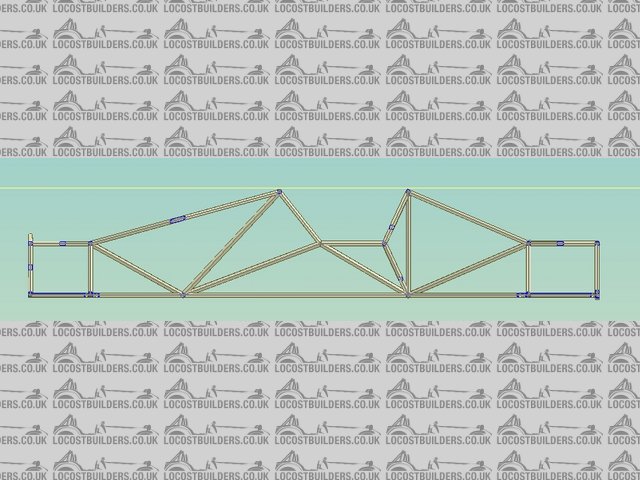

Side:

left
Trimetric:

trimetric
Intending to add a tube or so to the bottom of the cockpit and fiddle with the triangulation around the suspension.
|
|
|
|
|
blakep82
|
| posted on 19/9/08 at 08:43 PM |
|
|
looks good to me.
i gather its a rear engined chain diff set up? though there seems to be a bar between the driver and passenger? not sure i like where that is
________________________
IVA manual link http://www.businesslink.gov.uk/bdotg/action/detail?type=RESOURCES&itemId=1081997083
don't write OT on a new thread title, you're creating the topic, everything you write is very much ON topic!
|
|
|
JoelP
|
| posted on 19/9/08 at 09:12 PM |
|
|
quote:
Originally posted by blakep82
looks good to me.
i gather its a rear engined chain diff set up? though there seems to be a bar between the driver and passenger? not sure i like where that is
think thats just the view point, as its not in others.
Only bit i dont like is the side viewed triangle that goes by your shoulder. Its a very large angle, and having that triangle so nearly flattened
gives forces more leverage over it. If you could make it head a little towards equilateral by moving any points, i think it would stiffen it nicely.
|
|
|
mark chandler
|
| posted on 19/9/08 at 10:05 PM |
|
|
Tight angles are not an issue as the bead of weld along the side is much longer, you can usually roll the weld pool in from each side quite a way,
gravity helps.
Looks fine to me
|
|
|
indykid
|
| posted on 20/9/08 at 09:57 AM |
|
|
the rear bulkhead's an awkward shape. seems to have a kink in it and some dead space at the bottom. is that for the tanks to go in from
underneath?
i'd certainly have a go at building it anyway. the tight joins would be achieveable with a mig and slim shroud or just add some gussets.
