Driveshaft fitting (Multiple choice!)
Hi all, I hope you can help.
I am fitting my sierra push-in driveshafts, on my velocity, and they are fouling on the rear uprights (drum brakes). Is the large hole in the upright
supposed to be big enough for them to fit through? Mine isn't!
I don't know whether this is because I have too many spacer washers between the upright and the brake back plate. The various lumps and bumps on
the back of the back plate mean that I have to use 6 washers.
Should I
a) Make the upright hole bigger?
b) Grind off the lumps of the backplate?
c) Fit the hub on the other side of the bp (ie between the bp and the upright)?
d) do something else?!
Cheers for any help. I could add a photo if it helps.
Rich
|
|
|
|
|
nick205
|
| posted on 11/6/07 at 09:42 PM |
|
|
not familiar with the Velocity, but something doesn't sound right to me. The drum brake backplate should sit flat against the upright and then
the whole driveshaft assembly should slide through the backplate and upright so that the hub sits flush against the backplate. The hub is then bolted
to the upright, trapping the backplate inbetween. You certainly shouldn't need washers in there.
Just a thought, but have you got the right uprights? Uprights for a disc braked rear end will be different to accommodate the caliper and not the
drum backplate.
Any photos you can post?
|
|
|
jollygreengiant
|
| posted on 12/6/07 at 04:21 AM |
|
|
Photo(s) would help. Cheers.
Beware of the Goldfish in the tulip mines. The ONLY defence against them is smoking peanut butter sandwiches.
|
|
|
tks
|
| posted on 12/6/07 at 10:29 AM |
|
|
pics will make the problem clear..
Tks
The above comments are always meant to be from the above persons perspective.
|
|
|
RichB
|
| posted on 12/6/07 at 11:58 AM |
|
|

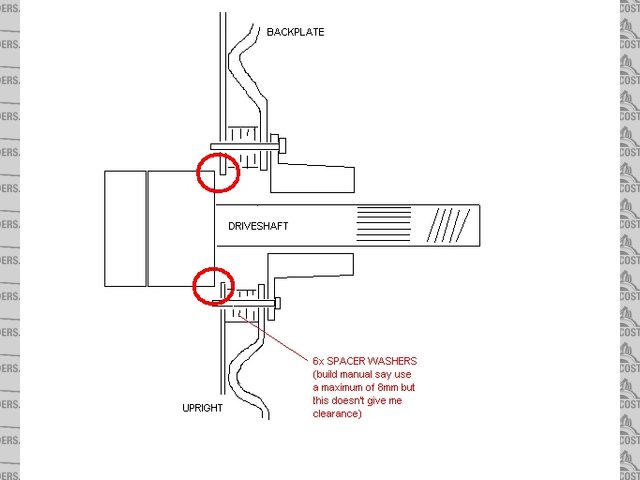

I'll take some photos tonight but just done a quick diagram. The red circle indicate where the driveshaft fouls on the upright.
They are definitely the right uprights for drum brake although they look like they might be made for a smaller backplate. I queried Luego on this and
they said they only make one type of drum upright so it must be right!
The build manual says to use a max of 8mm spacer washers in between the backplate and the upright. But this dosen't give me enough clearance. Do
I have a wierd backplate?
Anyway I'll post some photos later for you to get a clearer idea of what's going on.
Cheers
Rich
|
|
|
RichB
|
| posted on 12/6/07 at 12:02 PM |
|
|
It would help if I actually uploaded the diagram!

Rescued attachment rear hub.jpg
|
|
|
Paul (Notts)
|
| posted on 12/6/07 at 03:00 PM |
|
|

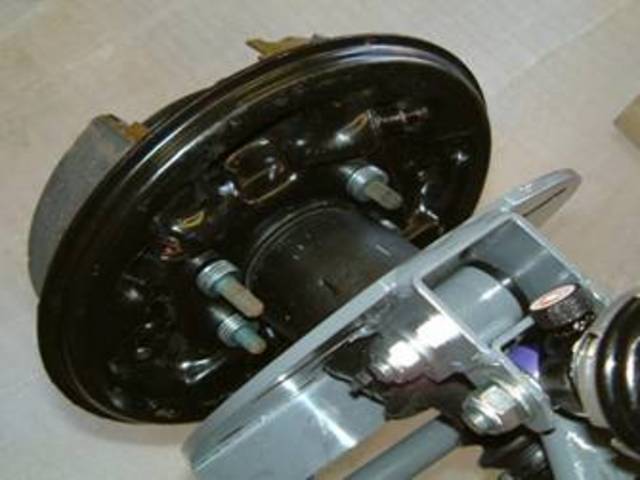

The photo in the luego build manual explains the spacers but shows the drive shaft passing clean through the upright

Rescued attachment image010.jpg
|
|
|
tks
|
| posted on 12/6/07 at 03:29 PM |
|
|
mhhh
i was in the biggest scrapy of spain..
last week and i founded out that after 94 the escort driveshafts are allot bigger then the earlyer models.
maybe you have a to new pushin shaft system.
from wich year is your driveshaft /donor?
Tks
The above comments are always meant to be from the above persons perspective.
|
|
|
RichB
|
| posted on 12/6/07 at 04:58 PM |
|
|
I think it was a '92 (if that was H reg) sierra estate
|
|
|
Paul (Notts)
|
| posted on 12/6/07 at 07:21 PM |
|
|
Is this for a Velocity or a Velocity XT
I seem to remember something about the driveshafts for the original velocity needing Shortening . Some one with a velocity may help with the
difference>>
Could be wrong as I have a Viento...
|
|
|
rusty nuts
|
| posted on 12/6/07 at 07:54 PM |
|
|
The Luego Locost IRS had to have the driveshafts shortened, don't know about the Velocity
|
|
|
RichB
|
| posted on 13/6/07 at 11:15 AM |
|
|

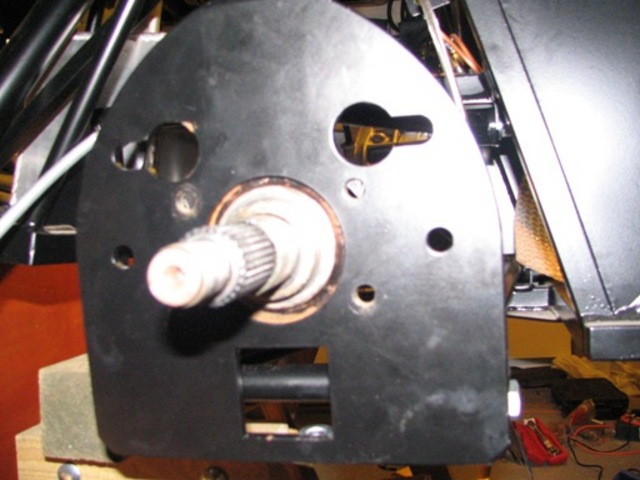

Nope it's an XT. Here are some photos.

Rescued attachment Rear Hub 003.jpg
|
|
|
RichB
|
| posted on 13/6/07 at 11:16 AM |
|
|

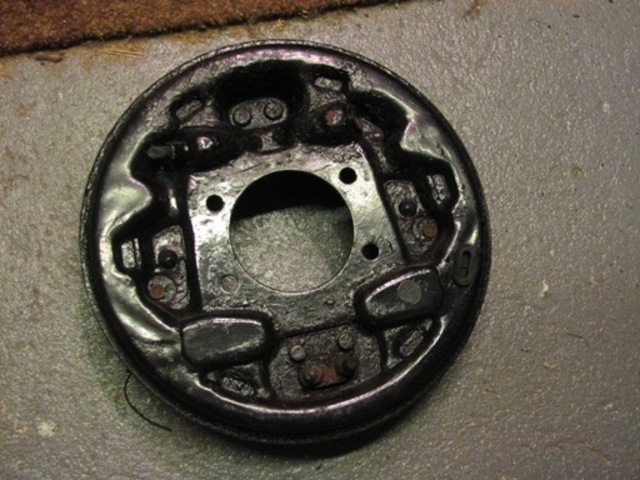

Backplate

Rescued attachment Rear Hub 005.jpg
|
|
|
RichB
|
| posted on 13/6/07 at 11:18 AM |
|
|

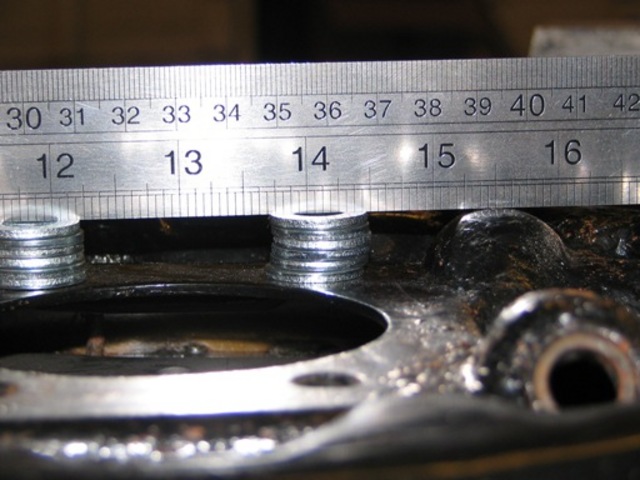

This one shows the 12mm clearance i need to fit the backplate.

Rescued attachment Rear Hub 007.jpg
|
|
|
Paul (Notts)
|
| posted on 13/6/07 at 03:11 PM |
|
|
have you got a pic of the end of the drive shaft to show what type it is..
|
|
|
RichB
|
| posted on 14/6/07 at 11:39 AM |
|
|

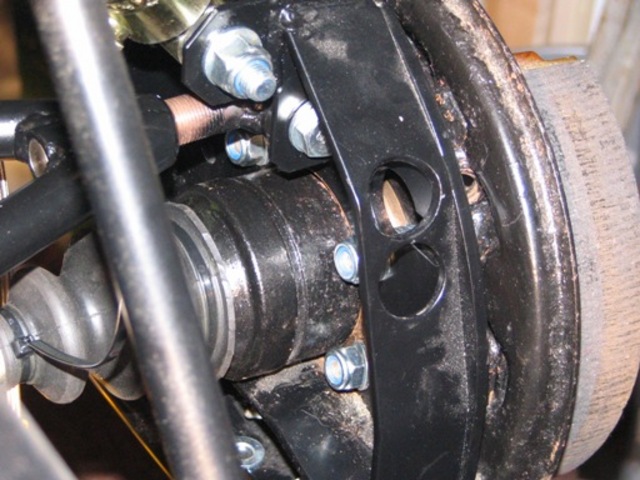

Which end? I've got this one showing the wheel end. I'll take a diff end photo this evening if that's what you mean.

Rescued attachment Rear Hub 001.jpg
|
|
|
tks
|
| posted on 14/6/07 at 12:51 PM |
|
|
mhh i would let a laser/plasma cut the plate for you out of 12mm steel. instead of those rings....
then you are done right???
your cuestion is wy 12mm instead of 8mm??
tks
The above comments are always meant to be from the above persons perspective.
|
|
|
nick205
|
| posted on 15/6/07 at 09:41 AM |
|
|
That just doesn't look right to me. I don't think the 4 hub carrier bolts should be put under that much shear force.
Added to that, the washers and holes in the backplate and upright are clearance holes which surely aloows room for the whole assembly to move
around?
Other rear uprights I've seen have a ~10mm thick plate welded to the body of the upright which is shaped to fit into the rear of the backplate.
The hub carrier bolts then locate in threaded holes in the 10mm plate (as per the original Sierra assembly).
Have you checked with Luego to clarify how they assemble them?
Attached pic shows the MK rear upright with 10mm plate....

Rescued attachment img_6.jpg
|
|
|
