Nitrogeno25
|
| posted on 18/11/11 at 09:05 PM |
|
|
Cutting patinted aluminium
During my duratec transplant I need to enlarge the outlet for the exhaust. How can I do to enlarge the hole where the exhaust exit with minimal damage
to the paint work?
Thank you in advance!
|
|
|
|
|
jacko
|
| posted on 18/11/11 at 09:10 PM |
|
|
I would use a jigsaw with a very fine cutting blade but first put masking type all over the area where you are cutting
|
|
|
mookaloid
|
| posted on 18/11/11 at 09:20 PM |
|
|
"That thing you're thinking - it wont be that."
|
|
|
r1_pete
|
| posted on 18/11/11 at 09:24 PM |
|
|

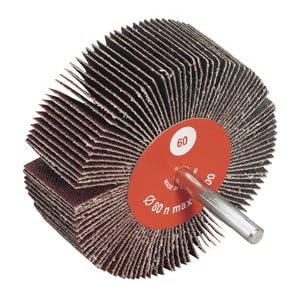

I'd go with a flap wheel and patience, you should be able to touch the edges in, or use a trim.
|
|
|
deltron63
|
| posted on 18/11/11 at 09:39 PM |
|
|
quote:
Originally posted by jacko
I would use a jigsaw with a very fine cutting blade but first put masking type all over the area where you are cutting
That's how i did mine
|
|
|
Confused but excited.
|
| posted on 18/11/11 at 09:46 PM |
|
|
You could try masking the area with tape, then gently cutting the outline with a craft knife. Carefully cut away up to your score line.
Tell them about the bent treacle edges!
|
|
|
austin man
|
| posted on 18/11/11 at 09:54 PM |
|
|
quote:
Originally posted by deltron63
quote:
Originally posted by jacko
I would use a jigsaw with a very fine cutting blade but first put masking type all over the area where you are cutting
That's how i did mine
Also consider using plywood beneath it and cut through this , this helps it stop bending if the alluminium snags in the blade
Life is like a bowl of fruit, funny how all the weird looking ones are left alone
|
|
|
macc man
|
| posted on 19/11/11 at 09:52 AM |
|
|
I had a similar problem so I used a holesaw supported by plywood at rear. Worked for me.
|
|
|
Dusty
|
| posted on 19/11/11 at 10:52 AM |
|
|
Sheet metal nibbler. The type that leaves thousands of tiny sharp new moon shaped scraps that get in your fingers for weeks after. This ones a snip
but there are 30 more from £16 upwards on ebay. Fein Sheet Metal Nibbler BLK 3.5, 10 Gauge (110V) | eBay
[Edited on 19/11/11 by Dusty]
|
|
|
