Rear diffuser........?
Thinking of making and fitting one.
Anyone made and fitted one ? Any pics ?
Got too help airflow out the back and save the rear panel acting like a drag car parachute ?
My fisrt plan is just panel the void in with thin alloy sheet, but should I go a bit more hi tec ?
|
|
|
|
|
Hellfire
|
| posted on 13/5/07 at 09:13 PM |
|
|
We've made and fitted a rear diffuser. It's detailed on our website but for some reason it's down at the moment
Phil
|
|
|
omega0684
|
| posted on 13/5/07 at 09:50 PM |
|
|

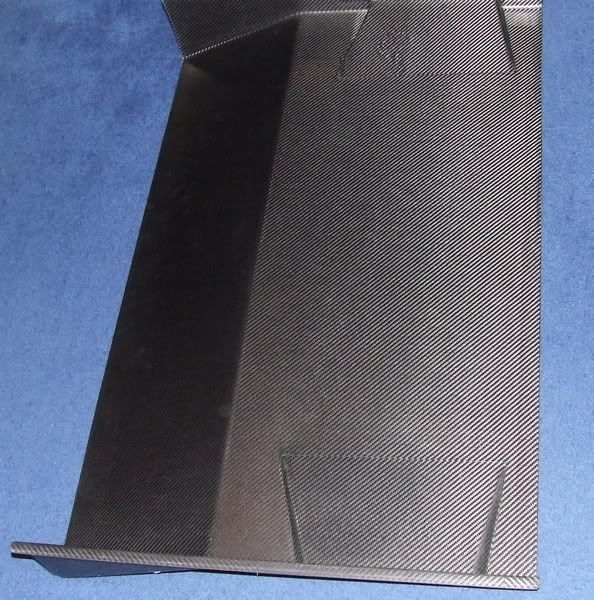

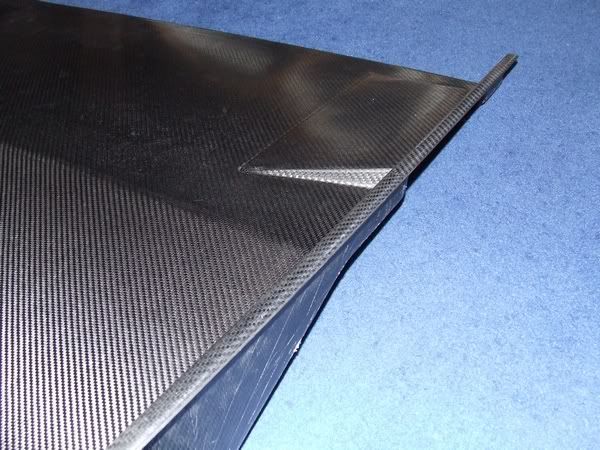

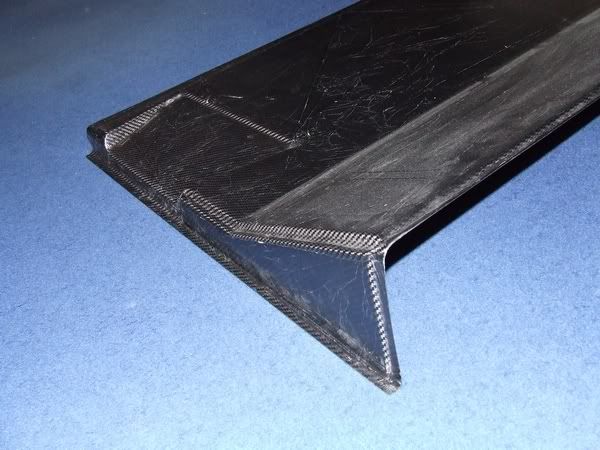

here is the rear diffuser i got today
dimensions are 110cm wide by 73cm deep and the rear flicks up by 16cm,
hope these help
[Edited on 13/5/07 by omega0684]
I love Pinto's, even if i did get mine from P&O!
|
|
|
RazMan
|
| posted on 13/5/07 at 09:53 PM |
|
|
That looks very bling Omega - where did you get it? - I am in the market for something like that and was thinking about making a mould.
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
omega0684
|
| posted on 13/5/07 at 10:03 PM |
|
|
hi mike,
(car looked very good at stoneliegh by the way)
i got the diffuser off a fellow DAX Rush owner, the diffuser is the one that are made for Westfields, you can buy them from their website i think.
now my question? does anyone where i can get my hands on a pair of carbon fibre front cycle wings? i think westfireld do some but i havent seen any
pictures? does anyone have a pictures of carbon fibre cycle wings
cheers fellas
Alex
[Edited on 13/5/07 by omega0684]
I love Pinto's, even if i did get mine from P&O!
|
|
|
RazMan
|
| posted on 13/5/07 at 10:15 PM |
|
|
I saw a pair of carbon fibre front wings at Detling - SVC stand of all places. I think they may have been fake carbon though
You haven't got a link for the diffuser by any chance? - I checked the Westy site and no mention of a diffuser anywhere. I just bought some
plywood from B&Q to make a mould but that looks as though it might be close to what I need.
Ta for the compliment by the way
[Edited on 13-5-07 by RazMan]
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
ravingfool
|
| posted on 13/5/07 at 10:17 PM |
|
|
Tiger also do carbon wings, not sure of prices mind you but you can see pictures of them in the gallery for the R6 and B6
http://www.tigerracing.com/cars/tiger-b6-main.php
[Edited on 13/5/07 by ravingfool]
|
|
|
omega0684
|
| posted on 13/5/07 at 10:28 PM |
|
|
mike here is a link to the westfield shop.
http://www.westfield-sportscars.co.uk/shop/
if you do a search for the wing it should come up, if not may be worth a ring to westfield and ask them what they can do and for prices
hope this helps
Alex
I love Pinto's, even if i did get mine from P&O!
|
|
|
Avoneer
|
| posted on 13/5/07 at 10:43 PM |
|
|
Fluke also do these in carbon:
http://locostbuilders.co.uk/viewthread.php?tid=44331
Pat...
No trees were killed in the sending of this message.
However a large number of electrons were terribly inconvenienced.
|
|
|
nitram38
|
| posted on 14/5/07 at 03:09 AM |
|
|
I have a set for sale on
ebay<
br />
It depends what size you want as mine are 8" wide and will fit a 185 tyre.
I tried them on a 195/50/15 toyo but they just touched the sides, although toyos have fatter sidewalls to give rim protection.
|
|
|
RazMan
|
| posted on 14/5/07 at 06:55 AM |
|
|
quote:
Originally posted by omega0684
... if you do a search for the wing it should come up, if not may be worth a ring to westfield and ask them what they can do and for prices
Nope, not a sausage - I'll give them a ring today and see what they can do.
Thanks Alex
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
Nick Skidmore
|
| posted on 14/5/07 at 08:27 AM |
|
|
I have some diffusers for sale.
They are in a carbon 'like' material with a foam core.
Ex formula cars, had some small repairs but can easily be cut and modded to suit.
They have the advantage of being wind tunnel tested and a are known to work.
email u2u or 07903 474191 if interested.
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
wheezy
|
| posted on 14/5/07 at 09:05 AM |
|
|
The diffuser angle is quite critical as well. The optimum angle is 9.5 deg but anything above 15 deg and the airflow will seperate along the diffuser
drastically reducing its effect.
Dave
|
|
|
britishtrident
|
| posted on 14/5/07 at 09:40 AM |
|
|
quote:
Originally posted by wheezy
The diffuser angle is quite critical as well. The optimum angle is 9.5 deg but anything above 15 deg and the airflow will seperate along the diffuser
drastically reducing its effect.
Dave
Yes years ago I did some Fem simulation and wind tunnel work on annular diffusers at over 15 degrees the flow stagnates & separates and you get
back flow (ie it stalls). Back flow causes a lot of drag.
[I] “ What use our work, Bennet, if we cannot care for those we love? .”
― From BBC TV/Amazon's Ripper Street.
[/I]
|
|
|
britishtrident
|
| posted on 14/5/07 at 09:47 AM |
|
|
Real Carbon fibre isn't a good material for mudguards, it is too brittle, any stones hitting the underside cause a lot of staring on the top
side.
For them to last the underside needs a couple of layers of Glass fibres as a protective layer.
Although it has a much lower tensie strength Because it is more elastic Glass fibre (and kevlar) is much better at dealing with small object impacts.
[I] “ What use our work, Bennet, if we cannot care for those we love? .”
― From BBC TV/Amazon's Ripper Street.
[/I]
|
|
|
Peteff
|
| posted on 14/5/07 at 09:47 AM |
|
|
A mate of mine tried to fit one and ended up cutting more away than he started with to miss the fuel tank and axle and still have ground clearance.
yours, Pete
I went into the RSPCA office the other day. It was so small you could hardly swing a cat in there.
|
|
|
RazMan
|
| posted on 14/5/07 at 10:37 AM |
|
|
Update:
I just phoned Westfield and they confirmed that they do a diffuser for the XTR2. The guy I spoke to quoted me £50 ish plus VAT which I think sounds
very reasonable.
I asked him what it was made of and he said that it was a mixture of wood & fibreglass (which suprised me somewhat)
Alex, can you confirm this?
Cheers,
Raz
When thinking outside the box doesn't work any more, it's time to build a new box
|
|
|
