speedyxjs
|
| posted on 26/5/09 at 07:49 PM |
|
|
Battery Location - Poll
I know this was discussed yesterday but i also need to know.
Although my tintop has the battery in the boot, i am still a bit undecided where to put it in the locost.
ps bear in mind i may need to use a rather large battery so option 3 may look a bit strange is the seat is quite far forward.
How long can i resist the temptation to drop a V8 in?
|
|
|
|
|
smart51
|
| posted on 26/5/09 at 07:53 PM |
|
|
I'd put all the "workings" of the car in the engine bay, its the most sensible place. I'd also keep it as low as possible for
the lowest CofG. That said, if your car is front heavy, somewhere at the back would be good. Make it accessible though. You never know when you
might need to charge it. Especially in an open car where some joker may put your side lights and indicators on when you're not there.
Electrically, the best place is near the starter motor. Keep the high current cables as short as you can.
|
|
|
blakep82
|
| posted on 26/5/09 at 07:58 PM |
|
|
as mentioned in the other topic today, nothing wrong with putting it in the boot, as long as there's no risk of it touching the tank, or petol
fumes being about in case of a battery lead coming loose and causing a spark, so watch you tank vent tube.
if there's no room with the engine, the boot is fine, but footwell is maybe your best
________________________
IVA manual link http://www.businesslink.gov.uk/bdotg/action/detail?type=RESOURCES&itemId=1081997083
don't write OT on a new thread title, you're creating the topic, everything you write is very much ON topic!
|
|
|
JoelP
|
| posted on 26/5/09 at 08:05 PM |
|
|
footwell is best IMHO, its low down, near the engine, opposite you to balance weight a bit, and not far from the centre of the car for the moment of
inertia.
And i cant think of ANY good reasons not to put it there!
|
|
|
speedyxjs
|
| posted on 26/5/09 at 08:17 PM |
|
|
quote:
Originally posted by JoelP
And i cant think of ANY good reasons not to put it there!
Increasing the weight over the front wheels (although not too much)
|
|
|
Ninehigh
|
| posted on 26/5/09 at 08:28 PM |
|
|
I'd vote for "where it fits" preferably engine bay.
What tintop have you got with a battery in the boot?
|
|
|
JoelP
|
| posted on 26/5/09 at 08:40 PM |
|
|
quote:
Originally posted by speedyxjs
quote:
Originally posted by JoelP
And i cant think of ANY good reasons not to put it there!
Increasing the weight over the front wheels (although not too much)
Passenger footwell is a good few feet behind the front wheel! More if you put it under the passangers knees! Assuming a locost is often 50/50 anyway,
close to the middle is good!
|
|
|
MakeEverything
|
| posted on 26/5/09 at 09:18 PM |
|
|
For a larger than average battery, id say sacrifice your boot space for the bigger battery, but segregate it from the fuel tank area.
Youll need some big trirated cable for the starter though to cater for the distance. Youll need to go up one size, and enclose it to protect it i
would say.
Kindest Regards,
Richard.
...You can make it foolProof, but youll never make it Idiot Proof!...
|
|
|
coozer
|
| posted on 26/5/09 at 09:57 PM |
|
|

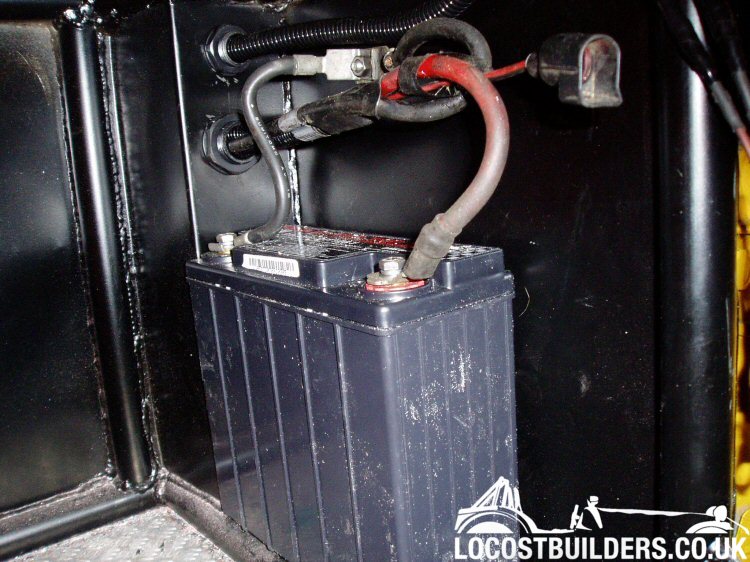

Mine is snug in the passenger footwell behind a velcro'd on panel. Keeps the engine bay nice and neat.
The other advantage I found was using the donor cabling totally unmodified. Still wrapped as it came off the Sierra.
This pic shows it in place but not secured....
[Edited on 26/5/09 by coozer].JPG)
1972 V8 Jago
1980 Z750
|
|
|
LBMEFM
|
| posted on 27/5/09 at 06:12 AM |
|
|
I'd vote for "where it fits" preferably engine bay.
What tintop have you got with a battery in the boot?
Mini's, some BMW's and many older classic cars.
|
|
|
JAG
|
| posted on 27/5/09 at 08:03 AM |
|
|
Mazda MX-5's used to have the battery in the boot. Not sure about the current model though.
