alternator wiring
I'm having some alternator issues and questioning the wiring.
Are alternators normally connected to a permanent live, or switched? This is a zzr1100 engine.
|
|
|
|
|
adithorp
|
| posted on 29/9/25 at 07:59 PM |
|
|
Is it an alternator or a stator (tecnically thats a type of alternator) feeding a rectifier and that feeds to the battery? Bike usually have the
second.
Bike engine usually connects the output from rectifier via a main switched relay/solenoid to battery +ve.
A car alternator output is connected direct to battery +ve, unswithed.
[Edited on 29/9/25 by adithorp]
"A witty saying proves nothing" Voltaire
http://jpsc.org.uk/forum/
|
|
|
nick9one1
|
| posted on 1/10/25 at 07:05 PM |
|
|
I think this is a case of me not reading the manual properly. I assumed brown was +ve and white was ground

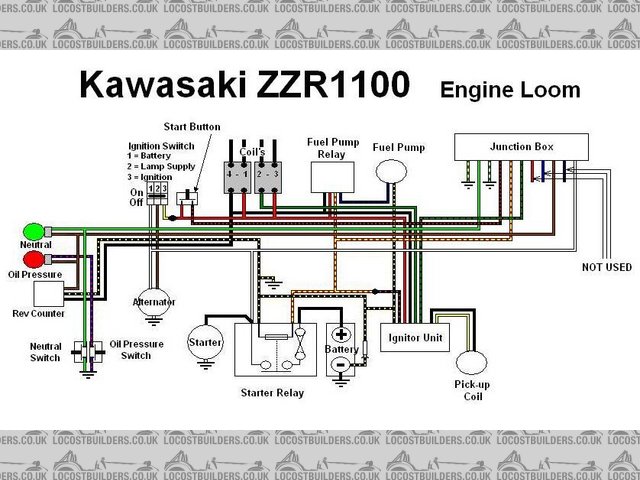

c model
It looks like both wires are +ve (one switched). Ground comes from the alternator body to engine connection.
|
|
|
