RobBrown
|
| posted on 29/3/11 at 06:14 PM |
|
|
R1 Carb Connections
I'm sure this has been asked before (I remember the picture), but can't find it.
I'm planning on fitting previously purchased Bike Carbs - after numerous years of them sitting in the footwell of the car
I'm after a complete list of what each connection is on a set of R1 5JJ Carbs, and where these connect to. I've identified the Fuel In
pipe, but that's about it.
The slider on the top - Is that a manual choke?
Also - What Throttle cable to use? Can I use the Original Bike Cable - or is there an aftermarket version for the standard Pedal block setup? For
bolting to Pinto, where inlet is on the nearside, what's the best routing for the cable to minimise cable stiffness (if you know what I
mean?)
Thanks
Rob
|
|
|
|
|
snapper
|
| posted on 29/3/11 at 07:26 PM |
|
|
Slider is manual choke, which needs a helper spring to return it.
I used a modified Sierra cable to keep the ball socket end, a new outer and some push bike ferules etc.
Needed some return springs on the carb and a pedal return spring on the pedal.
I eat to survive
I drink to forget
I breath to pi55 my ex wife off (and now my ex partner)
|
|
|
jacko
|
| posted on 29/3/11 at 08:47 PM |
|
|

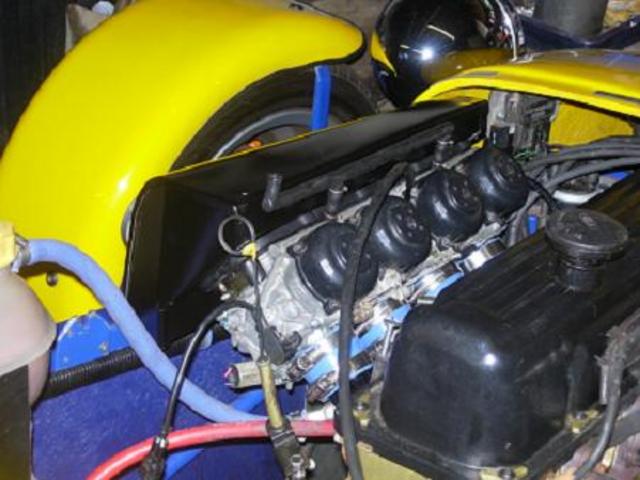

I have zx9r carbs but similar idea to r1
slide on top is choke slide i use the bonnet pull of the sierra under the steering column
I use a push bike rear brake cable for the throttle
The route for the cable is just behind the rocker cover
Jacko
[Edited on 29/3/11 by jacko]
|
|
|
RobBrown
|
| posted on 30/3/11 at 12:23 PM |
|
|
Thanks.
Do I only have to connect the fuel in? Is there a retrun, which should be blanked off\connected back to the fuel in via a t-piece.
Is it advisable to connect the coolant in to the carbs, How?
It looks like those black pipes at the top, are just open to the atmosphere
Snapper - Do you have a close-up picture of the throttle connection at the carb, as it isn't clear as to how the cable sleeve is held in
place?
Jacko - Where did you get the TPS connection, for Megajolt.
Rob
|
|
|
jacko
|
| posted on 30/3/11 at 04:26 PM |
|
|
Don't connect the water pipes you don't need them
there is only one fuel pipe on my carbs no return
you are best using a bike [f1 ] fuel pump there the right one for the carbs
i don't use the tps i have a modified dizzy on my set up the wire you see is not connected to any thing
jacko
|
|
|
