Turbo advice needed
Hello all, Im after a bit of advice,

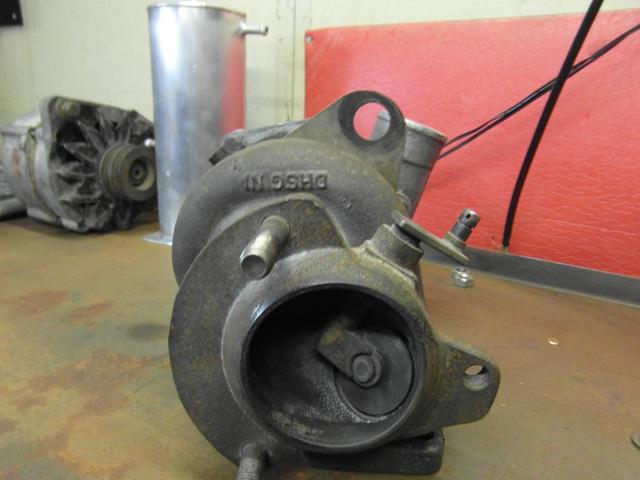

When I got my engine the turbo wasn't fitted and it wasnt supplied with a actuator, I have acquired one since however its clearly not the right
one! as you can see in the pictures below the bracket on the turbo and the wastegate dont line up, Am I missing something or do I need to take the
turbo apart to move the bracket round? also if anyone could shed some light on where to get the right actuator from? as the only ones I can find have
2 studs coming out the bottom and there not going to fit the bracket that I have. The plate on the turbo has the following numbers
Garrett
cust p/n yb0533
GAG p/n 466962-1
s/n vao 117a
Model no TB0361
also has the following numbers in it
38e91
BCC1
AR.42
DH2

turbo1

turbo2
Thanks
|
|
|
|
|
BigLee
|
| posted on 3/6/12 at 04:51 PM |
|
|
Providing the exhaust inlet and compressor outlet are where you want them, I would just use an actuator with a dog-legged shaft. Or wait until it is
in the car then you'll know if everything else lines up 1st. On my install, the actuator bolt locations were 180 degrees from where they needed
to be. I made an adapter from 3mm steel so the actuator fitted inline with the gate.
|
|
|
Antnicuk
|
| posted on 3/6/12 at 06:15 PM |
|
|
from memory the exhaust fitment looks like a ford but i dont recognise the flange with the big round hole in it. If thats where your actuator fits, i
dont know who. Actuator fitment isnt critical. As long as the flap is opened then it is working. As said above, position your compressor outlet
and your exhaust housing where you want them and make a little bracket to fir the actuator you have. The actautor bar doesnt have to be straight, as
mentioned, they can have a dog leg in them, just make sure it is the same or less than the boost you want to run.
From the pictures above the bracket that holds the actuator appears to be bolted to the exhaust housing but most turbos have them bolted to the comp
housing to stop the actuator getting too hot and melting the diaphragm inside.
600 BHP per ton, Stylus Brought back from the dead! Turbo Rotary Powered!
|
|
|
BigFaceDave
|
| posted on 3/6/12 at 06:37 PM |
|
|
Thanks for the replies! So if I take it apart and remove the existing bracket put it back together and then make one that comes of the compressor and
then just fit the actuator I have it should be ok? Also how much does the actuator move? how do I go about setting it up? Do I have the wastegate
closed when the engine is off and then it will sort itself out? and also where does the feed for the actuator come from? Is it the inlet manifold or
from the outlet on the turbo itself? Sorry for all the questions but im just a little new to all this turbo jiggery pokery! Thanks for all the help!
|
|
|
Antnicuk
|
| posted on 3/6/12 at 06:47 PM |
|
|
when you fit the actuator, close the wastegate and just hook the actautor bar over the gate pin and put a circlip on to hold the actuator bar in
pace. Most actuator bars are threaded to make them adjustable. The compressor housing usually has a small brass vacume pipe spiggot outlet, connect
a small hose to this and the other end goes straight to your actuator pipe inlet. If you are running a boost controller it would normally T into this
pipe.
If you browse ebay you will probably find one that fits already for only a few quid. Most standard actuators run about 7 - 10 psi but its easy to
test it and see what it opens at.
Nissan 300ZX Z32 Garrett Turbo Charger Actuators For GT25 T25 Turbocharger | eBay
Turbo Actuator | eBay
td04 15g turbo actuator | eBay
T3 Actuator escort rs turbo, fiesta rs turbo | eBay
and you can just buy the threaded bit here
Turbocharger Turbo Actuator Rod End Turnbuckle T2 T3 T34 TD04 TD05 Garrett 78mm | eBay
and here is the circlip you need
Garrett GT15 GT17 GT20 Turbo actuator circlip wastegate | eBay
Edited as i have just seen you are building a Cosworth powered car, is the turbo from a cosworth? if so just buy cossy actuator
[Edited on 3-6-12 by Antnicuk]
600 BHP per ton, Stylus Brought back from the dead! Turbo Rotary Powered!
|
|
|
BigFaceDave
|
| posted on 3/6/12 at 07:33 PM |
|
|
Thats brilliant thank you very much! I shall get cracking on that tonight I think! The engine is a Cosworth YB but it came from a mk2 escort so wasnt
straight out of a sierra hence its not been that straight forward! I have acquired a -31 actuator from a sierra but thats the one that doesnt fit but
it will make it fit!
I do have the brass fitting on the side of the compressor part of the turbo so I shall connect that up.
Seeing as I have got your attention any advise on how to go about feeding the water to turbo? At the minute I have got a short bit of silicone hose
from the outlet which is then joined to a steel pipe that came with the engine but didnt really fit anywhere so I managed to bend it to get it to the
right shape to fit but im not really happy with it, Will silicone hose bo ok to run from the outlet on the water pump directly to the turbo banjo
fitting?
|
|
|
Antnicuk
|
| posted on 3/6/12 at 07:37 PM |
|
|
i am not really sure how the stock cossie set up works, but silicone hose connected to the short metal banjo bolted to the turbo is normally fine as
long as the metal pipe is long to keep the silicone away from the cast iron turbine side of the turbo. You could always add some heat shield but good
quality silicone is pretty tough.
600 BHP per ton, Stylus Brought back from the dead! Turbo Rotary Powered!
|
|
|
BigFaceDave
|
| posted on 3/6/12 at 07:48 PM |
|
|
Brilliant! thanks for that. No excuses now! I will finish my cup of tea and then back out to the garage for the rest of the evening! Starting to feel
like I know where im going now!
|
|
|
