Help needed with 2 pin alternator plug

Hi gents,

Having a real nightmate with my 2 pin alternator plug. The google experts are showing that one pin is for the battery light on dash, fair enough...

But they are showing the 2nd pin as being fed back to the battery or a live?

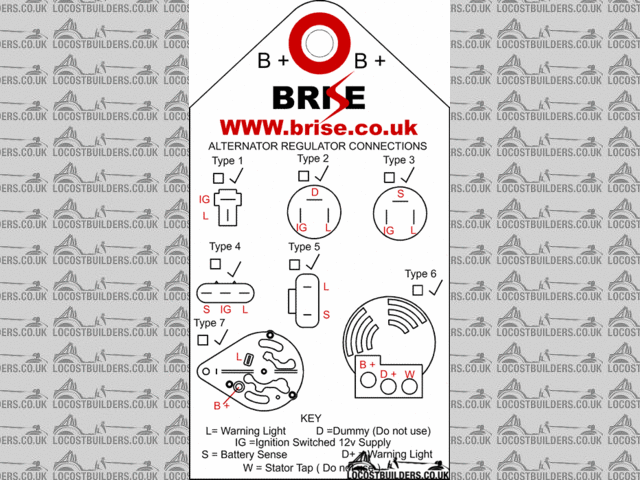

Also can anyone tell me what pin is what from the photo? In the middle of making my loom and dont want to be cutting plugs at a later date.


Cheers, Jay.

View User's Profile View All Posts By User U2U Member
theconrodkid

posted on 27/11/18 at 05:25 PM Reply With Quote
http://www.turbosport.co.uk/showthread.php?t=321249

half way down the page





who cares who wins
pass the pork pies

View User's Profile E-Mail User View All Posts By User U2U Member   theconrodkid 's Aim   theconrodkid 's Yahoo
tims31

posted on 27/11/18 at 05:40 PM Reply With Quote
Looks the same wiring as mine, Type 1

See this Description
Description


You can get the correct plug that clips and locks into the housing, CBS do them but I bought mine from elsewhere a lot cheaper, I'll see if I can found out from where
'Found it:
HTH

[Edited on 27/11/18 by tims31]https://www.autoelectricsupplies.co.uk/product/1329/category/258

[Edited on 27/11/18 by tims31]





Build: http://www.martinsfurybuild.co.uk/

View User's Profile Visit User's Homepage View All Posts By User U2U Member
J666AYP

posted on 27/11/18 at 08:13 PM Reply With Quote
Cheers gents. So the switched live running from fusebox to altenator.... is that a live signal going to the alt, or power coming from it to feed the fusebox?

Jay

View User's Profile View All Posts By User U2U Member
ragindave

posted on 28/11/18 at 12:18 AM Reply With Quote
Hello it is an ignition/ switched live feeding the alternator.
It switches the alternator on with out it the alternator will not charge.

View User's Profile View All Posts By User U2U Member
nick205

posted on 28/11/18 at 09:02 AM Reply With Quote
My alternator had the same setup and worked perfectly well with crimped spade connectors on the wiring loom.

(MK Indy with a 2.0 Pinto engine and a Kubota alternator my dad kindly fetched from his work)


View User's Profile Visit User's Homepage View All Posts By User U2U Member
mikeb

posted on 28/11/18 at 01:05 PM Reply With Quote
Sorry to hijack the thread but I'm just upgrading to the denso type alternators from the old sierra alternator (type 6 in the diagram).
For my wiring I only had two wires the main charge wire back the battery and the ignition light ( the W connector was not connected).

Can I run the denso type on just two wires if so which ones or do I need wire in another switched live?
Thanks

M

View User's Profile View All Posts By User U2U Member
tims31

posted on 28/11/18 at 01:30 PM Reply With Quote
As stated above you need the switched live to get the alternator to charge/work. I stand to be corrected but I think that 'excites' the generator so it will work or on some that is the lamp line.
If the alternator has three connections then you MUST connect all three or you could damage it. Just wire up as per the diagram, should take much to run a switched live from your fusebox.

[Edited on 28/11/18 by tims31]





Build: http://www.martinsfurybuild.co.uk/

View User's Profile Visit User's Homepage View All Posts By User U2U Member
J666AYP

posted on 28/11/18 at 05:52 PM Reply With Quote
Cheers gents, all wired up now.

Jay

View User's Profile View All Posts By User U2U Member
starterman

posted on 28/11/18 at 08:52 PM Reply With Quote
quote:
Originally posted by tims31
As stated above you need the switched live to get the alternator to charge/work. I stand to be corrected but I think that 'excites' the generator so it will work or on some that is the lamp line.
If the alternator has three connections then you MUST connect all three or you could damage it. Just wire up as per the diagram, should take much to run a switched live from your fusebox.

[Edited on 28/11/18 by tims31]


You don't need to connect all three all the time. A little knowledge is a dangerous thing !!!!

View User's Profile View All Posts By User U2U Member
tims31

posted on 29/11/18 at 04:44 PM Reply With Quote
quote:
Originally posted by starterman
quote:
Originally posted by tims31
As stated above you need the switched live to get the alternator to charge/work. I stand to be corrected but I think that 'excites' the generator so it will work or on some that is the lamp line.
If the alternator has three connections then you MUST connect all three or you could damage it. Just wire up as per the diagram, should take much to run a switched live from your fusebox.

[Edited on 28/11/18 by tims31]


You don't need to connect all three all the time. A little knowledge is a dangerous thing !!!!


I was just going by other posts I had read that advised if there were three then it was best to wire them all up rather than not and causing damage.

Can you explain why and expand on my knowledge?





Build: http://www.martinsfurybuild.co.uk/
