Alan M
|
| posted on 29/3/09 at 07:27 PM |
|
|
my dashboard
here's mine

|
|
|
|
|
Wheels244
|
| posted on 30/4/09 at 10:10 PM |
|
|
Here's mine

Description
|
|
|
Slater
|
| posted on 10/5/09 at 07:40 PM |
|
|

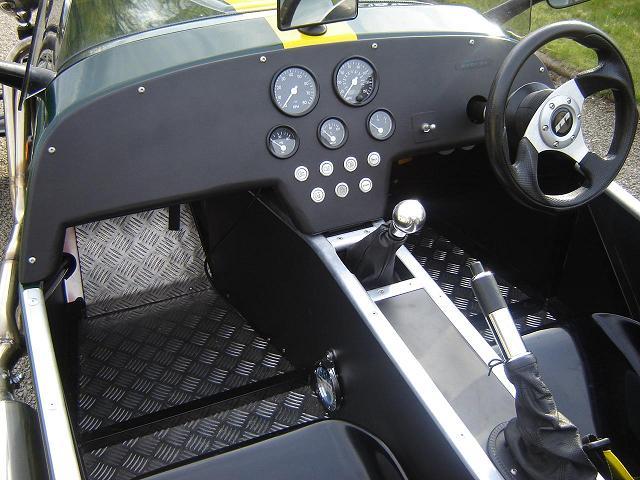

Here's mine.
6mm MDF with batons along lower edges, then radiused to 38mm, sealed, painted with gloss black then sprayed with dry film lube to give a satin black
look.

dash post sva 2
inspired by a spitfire cockpit.....

spitfire cockpit
[Edited on 10/5/09 by Slater]
Why do they call Port Harcourt "The Garden City"?...... Becauase they can't spell Stramash.
|
|
|
Jasper
|
| posted on 19/5/09 at 12:34 PM |
|
|
One more....

Rescued attachment ABCD0013.JPG
If you're not living life on the edge you're taking up too much room.
|
|
|
cosmick
|
| posted on 25/5/09 at 04:12 AM |
|
|
Dashboard
Fiesta Mk3 indicator/headlamp switch with self cancel on turns, plus Hayabusa instruments set into a carbon dash. I changed this from the original
Westfield dash which was clumsy in my opinion to this which is much more simple and i can see all the gauges rather than looking through the steering
wheel.
|
|
|
DavidW
|
| posted on 27/5/09 at 07:47 PM |
|
|
Dash Layout
Here's my effort.
(Car not yet finished)
David
|
|
|
matt.c
|
| posted on 30/5/09 at 04:32 PM |
|
|
Been wanting to show mine off for ages.
[img][/img]
|
|
|
johncarman
|
| posted on 3/7/09 at 06:38 PM |
|
|
Here's mine...
[img][/img]
|
|
|
NeilP
|
| posted on 2/8/09 at 09:17 PM |
|
|
Missed this thread for some reason - mine...

Description
If you pay peanuts...
Mentale, yar? Yar, mentale!
Drive it like you stole it!
|
|
|
stretch
|
| posted on 28/9/09 at 07:58 AM |
|
|
sorry for crappy pic qaulity
current progress on new dash - not 100% finished yet, decided to insert a cutout above gearlever
|
|
|
Daddylonglegs
|
| posted on 6/10/09 at 08:28 PM |
|
|
Here's my effort:
.JPG)
Still plenty of work to do on it yet. The wrinkly look in the middle is where I used packing tape to stop the resin running everywhere when I widened
the dash
Sort of worked
I'm going to pad it but still not sure whether to finish in black vinyl or what. Car is middle blue (or will be)
It looks like the Midget is winning at the moment......
|
|
|
Findlay234
|
| posted on 26/10/09 at 03:12 PM |
|
|
Original MK1 MR2 dials completely redone for the car....

Finished 1
The build can be viewed here....
http://www.locostbuilders.co.uk/viewthread.php?tid=76774
|
|
|
Angel Acevedo
|
| posted on 31/12/09 at 05:21 PM |
|
|
Dashboard Guts
First I would like to thank you all who posted pictures, this shows that there are several ways to skin a monkey succesfully.
Due to a back injurie  , I´m forced out of the shop for a while, so no heavy weight lifting-lugging around, but I think I can do my dash as the
elements are light weight,
To the ones that posted, I was thinking if you have pictures to post of the back side of the dash where the wiring is.
Another thing i was wondering was how did you managed to pass the wiring through the firewall, Grommets, Firewall connectors, Firewall strips, etc.
As per the above, I´m planning to finish my dash in such a manner that I can install-desinstall as a Unit.
Thanks in advance for posting ideas.
Seasons greetings.
AA
Beware of what you wish.. for it may come true....
|
|
|
RK
|
| posted on 3/1/10 at 04:19 PM |
|
|
On mine (not shown), most of the wires from the dash go to the fuse and junction boxes mounted on the firewall (made of plastic in my case, so not
really a firewall, then), and others go down through an opening in the transmission tunnel to the engine bay, and on to lights etc.
Although the majority of wires are in convoluted tubing, it is a real mess under my dash. I would love to have someone help me clean it up so I could
unplug things and eventually replace the dash.
|
|
|
Angel Acevedo
|
| posted on 4/1/10 at 02:27 PM |
|
|
RK,
Thanks anyway, as stated on my original question, I was trying to gather information to make some kind of modular installation.
Thanks again and regards.
AA
Beware of what you wish.. for it may come true....
|
|
|
contaminated
|
| posted on 5/1/10 at 05:33 PM |
|
|
Picture of mine. In answer to a question above, when I re-wired mine I terminated every single wire with these. In this way I can detatch the thing as
a unit if I have to.
http://www.cbsonline.co.uk/multipin-wiring-connectors-8-way-mul8-single-3402-p.asp.jpg)
|
|
|
Angel Acevedo
|
| posted on 5/1/10 at 05:44 PM |
|
|
Contaminated,
Cheers.
AA
Beware of what you wish.. for it may come true....
|
|
|
FFTS
|
| posted on 28/1/10 at 11:16 PM |
|
|

Flash Dash2

Flash Dash
Chris.
|
|
|
Angel Acevedo
|
| posted on 13/2/10 at 03:17 AM |
|
|
Cheesy bmp
Thid is my layout only....
Still have to try on for fit once Steering wheel position is determined.
[Edited on 2/13/2010 by Angel Acevedo]

Rescued attachment Dash.jpg
Beware of what you wish.. for it may come true....
|
|
|
Angel Acevedo
|
| posted on 13/2/10 at 03:20 AM |
|
|
Cheesy bmp
This is my layout only....
Still have to try on for fit once Steering wheel position is determined.
Any help regarding the number and functions of switches that I may be overlooking would be very appreciated.
[Edited on 2/13/2010 by Angel Acevedo]
Beware of what you wish.. for it may come true....
|
|
|
Ian D
|
| posted on 6/4/10 at 07:41 PM |
|
|
My Avon Dash

Rescued attachment dash compressed.jpg
|
|
|
Ian D
|
| posted on 6/4/10 at 07:43 PM |
|
|
avon Dash try 2

Rescued attachment dash compressed.jpg
|
|
|
eddie99
|
| posted on 23/4/10 at 02:39 PM |
|
|
Finally completed my Dash!

Dash done!
http://www.elitemotorsporteng.co.uk/
Twitter: @Elitemotoreng
Facebook: http://www.facebook.com/pages/Elite-Motorsport-Engineering/153409081394323
|
NOTE:This user is registered as a LocostBuilders trader and may offer commercial services to other users
|
Tartanpimpernel
|
| posted on 21/6/10 at 12:30 PM |
|
|
pic of my almost finished dash...
|
|
|
stevegough
|
| posted on 3/9/10 at 04:34 PM |
|
|
Like others, I have been looking forward for ages to posting my completed effort here....
Some inspiration from jabbahutt and one other (who I forget as their photo has long since vanished into the 'hard-drive-with-a-hole' in it)
but theirs had the beading around the edge.
Thanks, guys.

Description
[Edited on 3/9/10 by stevegough]
Luego Locost C20XE.
Build start: October 6th 2008.
IVA passed Jan 28th 2011.
First drive Feb 10th 2011.
First show: Stoneleigh 1st/2nd May 2011.
'Used up' first engine may 3rd 2011!
Back on the road with 2nd engine may 24th
First PASA mad drive 26/7/11
Sold to Mike in Methyr Tydvil 19/03/14
|
|
|
