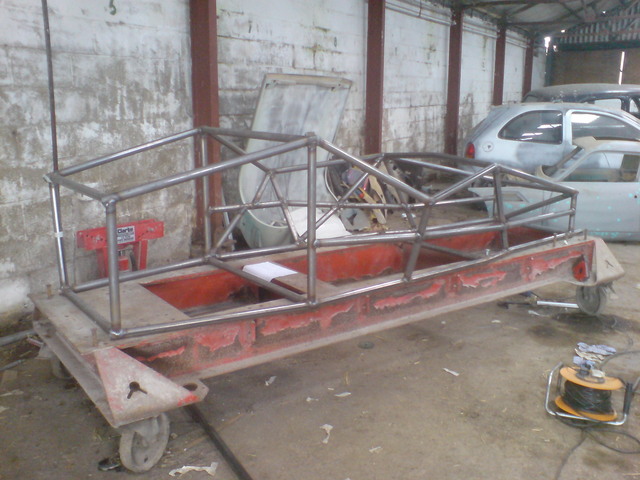

another newbie with new build
what are peoples opinions on the chassis i am building, obviously it is in early stages and you can see that i havnt put all the supports in yet, but
wou;ld like peoples advice on strenght etc.
it is ERW 38mm 2.5mm

Rescued attachment DSC00175.JPG
|
|
|
|
|
stuleah
|

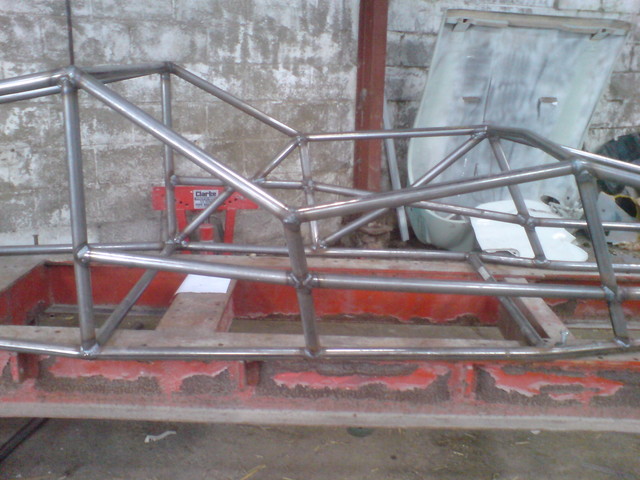

| posted on 25/2/08 at 04:40 PM |
|
|
another pic
[Edited on 25/2/08 by stuleah]

Rescued attachment DSC00170.JPG
|
|
|
mookaloid
|
| posted on 25/2/08 at 04:53 PM |
|
|
Those are BIG photos
"That thing you're thinking - it wont be that."
|
|
|
Confused but excited.
|
| posted on 25/2/08 at 04:57 PM |
|
|
'cos it's a BIG dolly.
Tell them about the bent treacle edges!
|
|
|
Shamrock GS
|
| posted on 25/2/08 at 05:47 PM |
|
|
Whats it going to be?
“Let your plans be dark and as impenetratable as night, and when you move, fall like a thunderbolt.”
Sun Tzu, The Art of War
|
|
|
stuleah
|
| posted on 25/2/08 at 06:23 PM |
|
|
its going to be similar to the ktm xbow but locost, sorry about the size, i will shrink them down in future
[Edited on 25/2/08 by stuleah]
|
|
|
stuleah
|
| posted on 25/2/08 at 06:34 PM |
|
|
another pic to put it in perspective
hopefully smaller if it worked
|
|
|
stuleah
|
| posted on 2/3/08 at 10:37 AM |
|
|
latest pic with engine sat in place
|
|
|
ZEN
|
| posted on 2/3/08 at 09:50 PM |
|
|
I'm no engineer but I think your chassis need more triangulations.
My YouTube channel Cars, bikes - track days, motorsport, sim racing and more.
|
|
|
stuleah
|
| posted on 3/3/08 at 09:45 PM |
|
|
yes it would if it was finished. it is only half done i am just putting the engine in place so that i can work out where i need the engine mounts in
the hope that i can incorporate them in with the triangulation.
did you understand that cos i confused myself half way thru writing it!
|
|
|
stuleah
|
| posted on 9/3/08 at 10:59 AM |
|
|
latest picture, just working out dimensions for seat rails in the floor etc
nice piture of my friend Paul.
hes 6ft1 so i thought it would be better having him sat in it than me at only 5ft6
[Edited on 9/3/08 by stuleah]
|
|
|
Doug68
|
| posted on 9/3/08 at 12:24 PM |
|
|
Beware getting angles to acute with the cross bracing, not only does it make it less effective but it makes it a PITA to weld the joint together.
I know this from experience gained the hard way.
Doug. 1TG
Sports Car Builders WA
|
|
|
stuleah
|
| posted on 9/3/08 at 03:20 PM |
|
|
are you referring to the cross shape at the back, if so i am still playing about with that so it shouldnt be as acute, thanks for the advice.
|
|
|
stuleah
|
| posted on 24/10/08 at 09:28 PM |
|
|
been a while but heres the latest picture
|
|
|
stuleah
|
| posted on 24/10/08 at 09:33 PM |
|
|
and another
|
|
|
stuleah
|
| posted on 24/10/08 at 09:37 PM |
|
|
|
|
|
Dinoman
|
| posted on 22/5/09 at 10:53 AM |
|
|
quote:
Originally posted by stuleah
another pic
[Edited on 25/2/08 by stuleah]
Hi, 38mm X 2.5mm I would think that is very heavy 1.5mm would be more than adequate as long as you do not put any bending loads in the middle of your
tubes, and Triangulate with 1mm, Hope that helps Regards DM
|
|
|
stuleah
|
| posted on 27/8/09 at 08:53 PM |
|
|
latest pics
bodywork nearly finished
|
|
|
pocket rocket
|
| posted on 3/9/09 at 07:21 PM |
|
|
wow dude thats ace!!! all that from scratch is amazing work
Dam...iv consused my ability with my intentions!
|
|
|
stuleah
|
| posted on 3/9/09 at 09:39 PM |
|
|
thanks took some time but its nearly finished.
|
|
|
