Radiator and intercooler to fit a MK Indy
I'm building a MK Indy with a VAG 1.8t-20V engine. I need to find a suitable radiator and intercooler that fits in the nose cone and have enough
cooling capacity. It seems to be rather difficult and I would appreciate any tip.
|
|
|
|
|
INDY BIRD
|
| posted on 2/2/09 at 09:59 PM |
|
|
Go to pace products site they do lots of them and could prob offer the advise on the size you need,
a mazda rx7 turbo intercooler should be ok size wise, rad look
like this
http://cgi.ebay.co.uk/93-97-MAZDA-RX7-RX-7-FD3S-V-MOUNT-INTERCOOLER-KIT_W0QQitemZ200304400516QQcmdZViewItemQQptZUK_CarsParts_Vehicles_CarParts_SM?hash
=item200304400516&_trksid=p3286.c0.m14&_trkparms=72%3A1683%7C66%3A2%7C65%3A12%7C39%3A2%7C240%3A1318
or if you are mounting it up high a coswort 2wd or 4wd should do the job,
4wd may need some mods as is 600mm wide same as noe cone,
pic below
good luck
|
|
|
INDY BIRD
|
| posted on 2/2/09 at 10:02 PM |
|
|

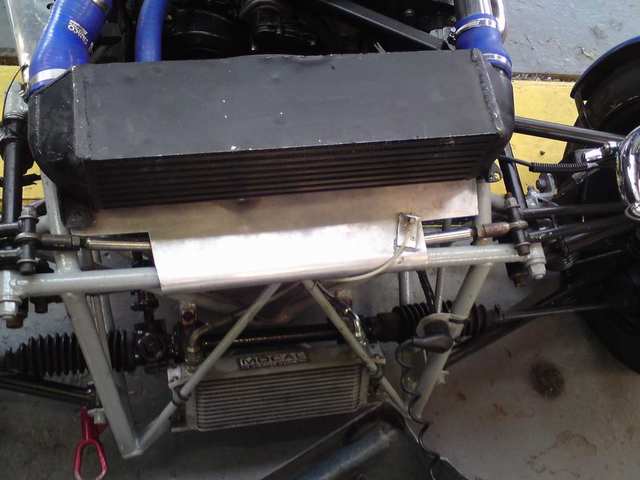

pic

Rescued attachment DSC00113.jpg
|
|
|
Antnicuk
|
| posted on 2/2/09 at 10:10 PM |
|
|
if you can run a v mount, both the i/cooler and rad will be much more efficient.
i used one of the rx7 i/c's on my last rx7 and it coped well in a v mount with 350 flyhp so would do your VAG unit without problem.
You can get creative with where you position them and you will be amazed how well they work if you can get them in a position where they have their
own dedicated airflow rather than just sticking one in front of the other.
On my RX7 track car I used an I/C flat in the bottom of the nose cone and it worked really well. The air going in your nose cone wants to get out and
will go down and is dragged through by the fast moving air travelling under the car.
This is how i did it on the stylus and it works a treat on the rotary which runs a lot hotter than a piston engine.
[Edited on 2-2-09 by Antnicuk]
600 BHP per ton, Stylus Brought back from the dead! Turbo Rotary Powered!
|
|
|
PAUL FISHER
|
| posted on 2/2/09 at 10:50 PM |
|
|
There's plenty room in the front of a Indy nose cone to fit a large intercooler,here's a 200sx engine with a modified nissan pulsar GTI R
intercooler fitted.
[Edited on 19/05/04 by PAUL FISHER]
|
|
|
stevec
|
| posted on 2/2/09 at 11:29 PM |
|
|
You could probably use an intercooler half that size if you were not taking near 100 degree inlet air from under the bonnet.
Steve
|
|
|
bimbleuk
|
| posted on 3/2/09 at 06:55 AM |
|
|
Here's my MR2 turbo intercooler mounted in front of a Polo rad. I currently have 270BHP but that's probably about the limit on this one. The
final fit has it fully shrouded with ally to maximise the flow through it.

Intercooler mounted
[Edited on 3-2-09 by bimbleuk]
|
|
|
Morty
|
| posted on 3/2/09 at 05:24 PM |
|
|
quote:
Originally posted by PAUL FISHER
There's plenty room in the front of a Indy nose cone to fit a large intercooler,here's a 200sx engine with a modified nissan pulsar GTI R
intercooler fitted.
[Edited on 19/05/04 by PAUL FISHER]
I not sure if I agree on that there's plenty of room.
I have tried with a Polo radiator but I couldn't get passed it with the hoses for an intercooler.
I have tried a Mercedes radiator, but even with a 90° angled pipe on the connections it was too wide.
Lately I have been in contact with Radtec, they have a radiator/intercooler unit based on a slightly smaller Polo radiator, but the depth is to big
130mm. I need to fit it rather high otherwise it is interfering with the nose cone, which means there is no room for the intercooler hoses and for a
fan.
On the orange Indy with the Nissan engine, what type of radiator is fitted and how deep is the intercooler? Any modifications to the nose cone?
|
|
|
Morty
|
| posted on 5/2/09 at 03:39 PM |
|
|
I have been in contact today again with Radtec and it looks like we will do a special version of the radiator and intercooler. This evening I will
make a mock up based on my latest ideas. If it is successful I will post a drawing of the parts. Thanks for the replies so far!
|
|
|
PAUL FISHER
|
| posted on 5/2/09 at 08:51 PM |
|
|
The nissan engined mk above if I recall correctly also has the polo radiator fitted,although they are not that large they are very efficient,but also
the polo radiators are all different sizes depending on model or year so it may be you have tried to fit one of the larger ones,I think the model you
require is the mk2 radiator for the 1.3 polo.
[Edited on 19/05/04 by PAUL FISHER]
|
|
|
Morty
|
| posted on 10/3/09 at 07:17 PM |
|
|
Hi,

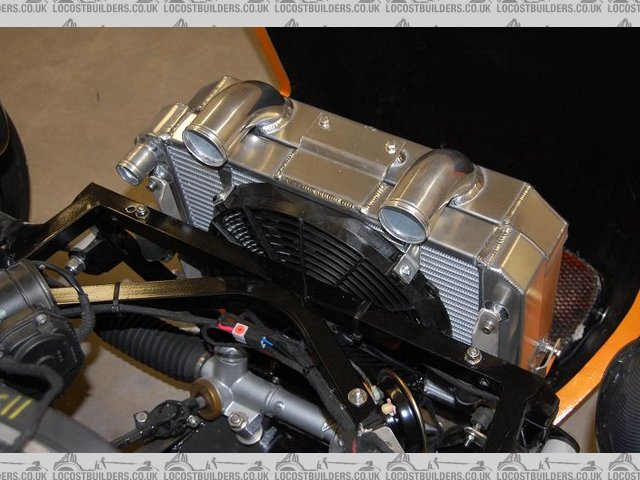

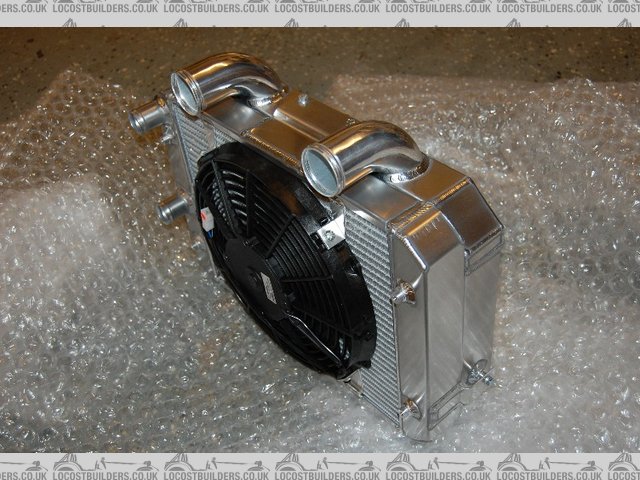

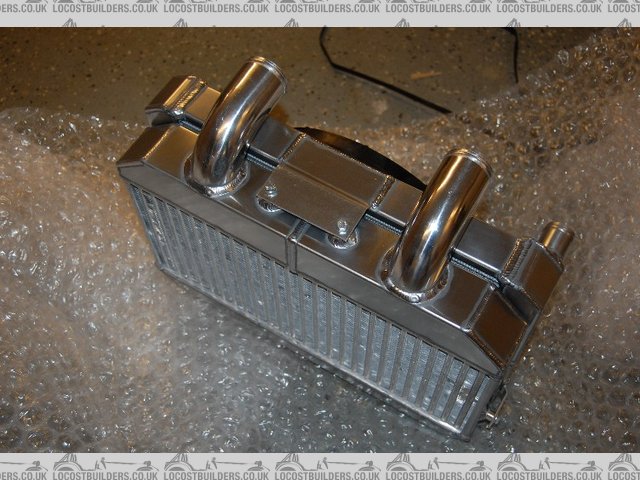

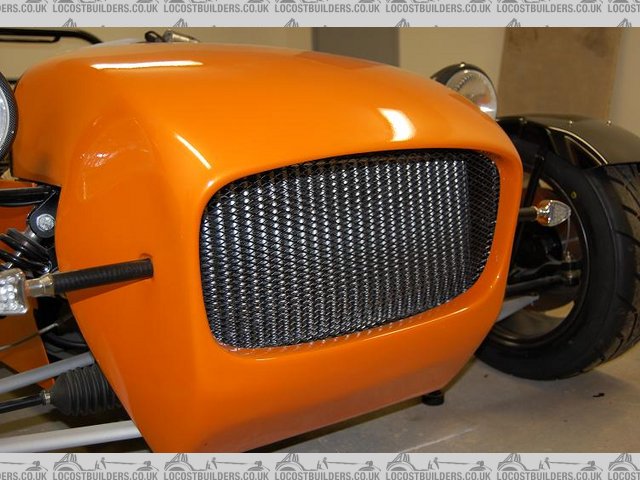

just a quick follow up on my radiator/intercooler question. This is the unit I received late last week. Now I have ordered a number of hoses and
aluminium pipes for next weekend.

Rad1

Rad2

Rad3

Front
|
|
|
INDY BIRD
|
| posted on 13/3/09 at 07:40 PM |
|
|
looks like a nice bit of kit what was the damage on that then£???????
will it get any heat shrink to the intercooler from the rad as so close together or is this not a problem once driving only when staitionary???
nice though looks the part, done a similar thing myself as that using radtec rad but have a gap around 4" between the 2 collers just incase
good luck with the install
|
|
|
Morty
|
| posted on 13/3/09 at 08:02 PM |
|
|
We will see if the there will be any disadvantages with having them mounted that close. I guess Radtec has done similar design on their Westfield
units for Cosworth engines.
It wasn't cheap but it looks nice and hopefully it will save me some overheating issues in the future.
|
|
|
Toprivetguns
|
| posted on 22/3/09 at 05:03 PM |
|
|
Aslong at the intercooler is infront, which it is from the pictures. Heatsoak should'nt be an issue.
It will always be provided with the cool air first. Aslong you have your footdown all the time headed in a forward direction, which im sure you
will... lol
Only drive as fast as your angel can fly... !
|
|
|
