Author: Subject: Intuitively, what do people think about this prop angle?
TimC

posted on 23/10/10 at 10:10 PM Reply With Quote
Intuitively, what do people think about this prop angle?

Evening All,
I've had a nagging doubt about the ability of the Gemini chassis to swallow a 5VY R1 engine. Another forum member (thanks again Mate!) has very kindly lent me his spare to have a dry fit.

Some photos are below. I think it's very border-line. What's the general opinion from folk here? You'll notice that the engine is forward (85mm) of the bulkhead. This is an attempt to:
a. Make the prop angle slightly better.
b. Make some room for an electric reverse at the engine-end (live axle.)

I'm not terribly concerned about the weight distribution as I'm no flyweight, the major criticism I have of BECs is a lack of steering feel due to the light front-end and the anti-dive built into the chassis should aid things a bit anyway. I am concerned about the prop angle. What do you think?

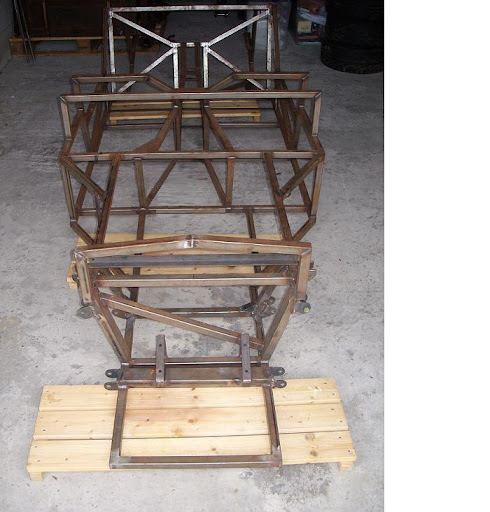

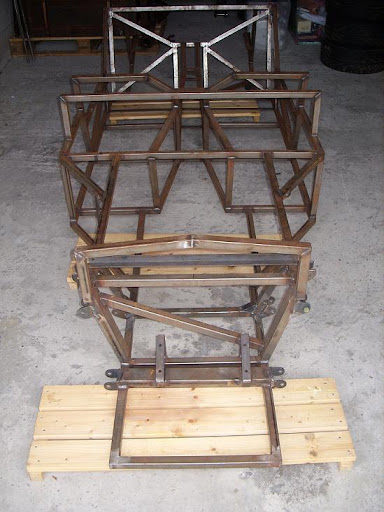

Bare, empty chassis:


Top-down:


From cockpit:

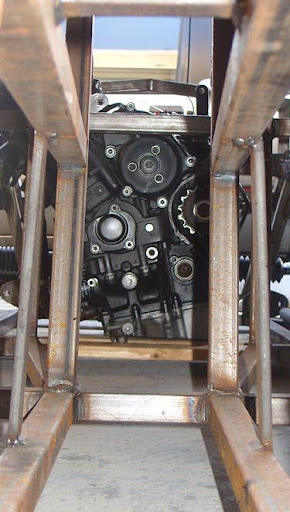

Down the tunnel:


Ta

TC

[Edited on 23/10/10 by TimC]






View User's Profile View All Posts By User U2U Member
ReMan

posted on 23/10/10 at 10:26 PM Reply With Quote
Apart from the engine being canted, it does'nt look like its going to even clear the tunnel uprights in that pic
View User's Profile Visit User's Homepage View All Posts By User U2U Member
blakep82

posted on 23/10/10 at 10:34 PM Reply With Quote
no. just no.

angle's too sharp i think, UJ's will be knackered pretty quick i reckon





________________________

IVA manual link http://www.businesslink.gov.uk/bdotg/action/detail?type=RESOURCES&itemId=1081997083

don't write OT on a new thread title, you're creating the topic, everything you write is very much ON topic!

View User's Profile View All Posts By User U2U Member
matt_gsxr

posted on 23/10/10 at 10:36 PM Reply With Quote
Are you planning to have the middle UJ around the point of your horizontal cross-member. If so that looks a lot like what I have.

Here is a picture of my set-up. I don't know whether mine is perfect, but it seems to work and I've done a couple of thousand miles and a couple of trackdays and its intact.

link



Final bracket was not made of wood!

These UJ's don't mind a bit of angle on them, it always looks worst when viewed from the diff, as the lengths are shortened.

Matt

View User's Profile Visit User's Homepage View All Posts By User U2U Member
matt_gsxr

posted on 23/10/10 at 10:38 PM Reply With Quote
It sounds like you are going to get some variation in the answers to this one.

;-)

View User's Profile Visit User's Homepage View All Posts By User U2U Member
ReMan

posted on 23/10/10 at 10:54 PM Reply With Quote
From the last photo it looks impossible let alone too sharp.

Why cant you pull the engine further over so the output is closer to the centre of the tunnel?

View User's Profile Visit User's Homepage View All Posts By User U2U Member
fesycresy

posted on 23/10/10 at 11:07 PM Reply With Quote
There's no angle because that footwell looks immense !!

Cut out the upright and move it over?





-----------------------------------------------------------------------------------------------------

The sooner you fall behind, the more time you'll have to catch up.

View User's Profile View All Posts By User U2U Member
daviep

posted on 24/10/10 at 05:53 AM Reply With Quote
Looks pretty exterme in the last photo but I think it's a bit of an optical illusion. Photo's 3+4 look as if it will run parallel with the top rail of the tunnel, presuming that the engine will be square in the chassis then measuring the angle of the transmission tunnel will give a good indication of prop angle, you can then telephone your chosen prop supplier and confirm that it will be ok.

If it was me I would mock up a prop for a better idea of angles but it looks like it will probably be ok to me.

I'd be tempted to rotate the engine slightly more upright to improve the angle if it didn't mess up the exhaust route.





“A truly great library contains something in it to offend everyone.”

View User's Profile E-Mail User View All Posts By User U2U Member
TimC

posted on 24/10/10 at 08:10 AM Reply With Quote
quote:
Originally posted by ReMan
it does'nt look like its going to even clear the tunnel uprights in that pic


quote:
Originally posted by ReMan
From the last photo it looks impossible let alone too sharp.

Why cant you pull the engine further over so the output is closer to the centre of the tunnel?


Its certainly not impossible. I agree that the picture down the tunnel makes it look as though it might be but the output shaft is about 250mm from the narrow tunnel upright. The engine can't move further to the pax side as the head is almost touching the chassis as it is (see first pic.)

quote:
Originally posted by matt_gsxr

Here is a picture of my set-up. I don't know whether mine is perfect, but it seems to work and I've done a couple of thousand miles and a couple of trackdays and its intact.


That's quite encouraging Matt. It doesn't look terribly different from yours.

quote:
Originally posted by fesycresy
There's no angle because that footwell looks immense !!

Cut out the upright and move it over?


I know - I did tell you didn't I? I only have size 8s too - was already thinking about doing something like this:

The extra tube at the bottom of the tunnel was always going in anyway.

quote:
Originally posted by daviep
I'd be tempted to rotate the engine slightly more upright to improve the angle if it didn't mess up the exhaust route.


The factory Fisher Fury installs do have the engine running more upright, however a conversation with a guy who really understands the 5VY has confirmed to me that it should be as in the pic. In any case, as you suggest, the alternative does make a sensible exhaust run near impossible.

Thanks for all the comments. On the plus side, I think it'll fit under the bonnet and not effect my planned ride height by protruding below the floor.






View User's Profile View All Posts By User U2U Member
matt_gsxr

posted on 24/10/10 at 10:23 AM Reply With Quote
regarding rotating the engine I would be surprised if a little rotation would make much difference. I say this because the acceleration forces in your application are pretty large (i.e. 1g lateral) which corresponds to rotating the engine by 45deg.

I'd be interested to understand better why vertical is the only option, just keen to learn, not doubting your expert.

Matt

View User's Profile Visit User's Homepage View All Posts By User U2U Member
adithorp

posted on 24/10/10 at 11:05 AM Reply With Quote
Looks OK to me, Tim. The view of the chassis from the front gives a better idea of the angle than the rear view up the tunnel. Can you ask thge prop' manufacturers what themax' allowable angle is? Racing will put high strain on it but for nothing like the amount of time you'd be running it on the road.

Edit... The overhead view makes the anlgle look fine.

The angle you have the engine is the standard orientation in the bike with the sump base horizontal (not as in my pictures). Makes a flat floor easier to achieve. You need to consider the position of the throttle bodies (and therefore airbox) before you decide on the angle of the sump. They stand very high. Bare in in mind the forces on the engine and the effect on the oil when in the bike under acceleration and you see it is designed to cope with the oil at that angle. You do need the breather mod though.

adrian

[Edited on 24/10/10 by adithorp]





"A witty saying proves nothing" Voltaire

http://jpsc.org.uk/forum/

View User's Profile View All Posts By User U2U Member
TimC

posted on 24/10/10 at 11:52 AM Reply With Quote
Thanks Matt & Adi.

The reason for having the sump flat is:
1. The pick-up is half way along the flat portion rather than in the deep-end as it were.
2. Having spent a lot of £££ getting the pick-ups analysed and moved if the sump is lower than 75mm, the pick-ups will be imperfect, which would be bad!

The good thing about the Gemini is that it has a seperate bonnet which makes a relatively small GRP part to modify if it needs a bonnet bulge (I wouldn't need to cut the whole front clam apart.)

I think it makes sense to move the upright member anyway as it may mean that I can get the whole install including reverse a smidge further back. That said, I can put the pedal box right back (I'm only 30.5" inside leg) to bring me back in the car.

Phew - happier again.






View User's Profile View All Posts By User U2U Member
bitsilly
Contributor






Posts 726
Registered 9/6/05
Member Is Offline

Photo Archive Go!
Building: Flexibility into my marriage, bless her!

posted on 24/10/10 at 12:08 PM Reply With Quote
When I was talking to AB the other day about ground clearance, he said he was looking at making an improved shallower R1 5VY billet sump.
It may be an idea to talk to him.
Also as said, ask prop manufacturers about max angles, I am sure they prefer an angle to absolutely straight.
Last thing, would putting an MNR reverse box in the chain help? Could it give two extra UJs to mitigate things?

View User's Profile View All Posts By User U2U Member
mark chandler

posted on 24/10/10 at 04:04 PM Reply With Quote
Are you making an exhaust to suit or looking to buy a pre-made one?

If the latter I would purchase and fit to the engine then see where it fits in the chassis.

For myself as the car is mostly driven only 1 up, my choice was to lump the engine over to the passenger side to balance the driver.

Regards Mark

View User's Profile View All Posts By User U2U Member
richard thomas

posted on 24/10/10 at 06:40 PM Reply With Quote
Looks similar to mine Tim...should be ok.
View User's Profile View All Posts By User U2U Member
Gergely

posted on 24/10/10 at 10:40 PM Reply With Quote
Hi,
We have a LHD car with the same 5VY engine, and it is pushed to the right hand side to help with weight distribution. The setup is a front propshaft at about 20 degrees, a reverse box and a longer cush propshaft straight to the diff.
What I have experienced is that there is a lot more noise coming from the driveline when off the power than in any RHD car I have sat in. I thought it was the reverse, so had that changed, the noise remained. I thought then, it must be the propshafts, so took them out and had them looked at. All crosses had to be changed and the propshafts re-balanced (after about 1000 road miles). But the propshaft operated within its technical limits (the angle we run is within the tolerance of the joints). The noise remained though...
The problem is that the car is now on its 5th reverse box, as all of the boxes went pop after driving about 100 miles on the road...
I'm pretty frustrated since we have done everything we can now, but for some reason, the drivetrain is an issue. The car is also on its second engine, the noise the same, so not an engine issue either. I can only think now that the front propshaft angle creates vibrations and load on the reverse box and the drivetrain that kills the box. So if I were you, Tim, I would move the engine so that the engine is dead straight with your diff. It would also help your car's weight distribution.

But can someone more clever than me in physics confirm if an angle of about 20 degrees creates more load on the reverse box than a 0 degree angle, supposing that the propshafts are perfectly balanced in both cases?

Gergely





Our build pictures

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
TimC

posted on 25/10/10 at 07:34 AM Reply With Quote
Gergely,
I think 20 degrees is a hell of a lot. I'm not sure I'd have even bothered posting the question if I was looking at an angle like that... do you have any pics? I've checked your album and can't see the engine install terribly clearly.

Back to mine, I have knocked up a sketch and reckon I'm looking at about 10 degrees at present but think I might get that down to something closer to 7degrees by carefully positioning the centre bearing.







View User's Profile View All Posts By User U2U Member
Gergely

posted on 25/10/10 at 12:14 PM Reply With Quote
Hi Tim,
I will try to get a good shot and try to calculate the angle more carefully, but looking at the angle with an angle gauge held on top, it came to about 20 degrees... so not good...
Can you not position your engine further to the left? Or is the chassis rail in the way?
Gergely





Our build pictures

View User's Profile E-Mail User Visit User's Homepage View All Posts By User U2U Member
TimC

posted on 25/10/10 at 12:46 PM Reply With Quote
quote:
Originally posted by Gergely
Can you not position your engine further to the left? Or is the chassis rail in the way?
Gergely


No, that's as far as it goes. The Gemini stays the same width as the seat-back right up to the end of the footwells and then tapers quite suddenly to form a rectangular engine compartment.

I'm a bit happier now - I think the only sacrifice I will need to make is to have the engine shunted forward of where it otherwise would have been. That said, I'm not too worried - some extra steering feel would be nice and I can shove myself backwards to compensate.






View User's Profile View All Posts By User U2U Member
Johneturbo

posted on 25/10/10 at 01:21 PM Reply With Quote
Interesting stuff

i think it's the one thing negative about bec's the trying to get the propshaft happy

i'm just in the process of setting my engine in the right place for making the mounts

Tim, if i stick up a piccy would you do me a angle gauge please so i can get an idea of what i have.

Matt ,when you talk about phasing do you mean having the same angle up as you would have across? if that makes any sense


View User's Profile Visit User's Homepage View All Posts By User U2U Member
TimC

posted on 25/10/10 at 01:28 PM Reply With Quote
quote:
Originally posted by Johneturbo
Tim, if i stick up a piccy would you do me a angle gauge please so i can get an idea of what i have.



Sure thing - in the absence of better tech, Paint and I have become good friends. Just try to get the picture as square as you can - I can only put the protractor through 90deg rotations!






View User's Profile View All Posts By User U2U Member
Breaker

posted on 25/10/10 at 02:05 PM Reply With Quote
quote:
Originally posted by Gergely
I'm pretty frustrated since we have done everything we can now, but for some reason, the drivetrain is an issue. The car is also on its second engine, the noise the same, so not an engine issue either. I can only think now that the front propshaft angle creates vibrations and load on the reverse box and the drivetrain that kills the box. So if I were you, Tim, I would move the engine so that the engine is dead straight with your diff. It would also help your car's weight distribution.

But can someone more clever than me in physics confirm if an angle of about 20 degrees creates more load on the reverse box than a 0 degree angle, supposing that the propshafts are perfectly balanced in both cases?

Gergely


I think you're almost right. The engine and diff don't have to be perfectly inline as long as the flanges (gearbox - diff - reversebox) are parallel.

I think TimC's situation is OK as the gearbox flange is parallel to the diff. As long as you also mount the reversebox or central bearing parallel you should be OK.

The "problem" wit UJ is when the flanges are not parallel; constant RPM at one side of the UJ, will result in (small) oscillating RPM at the other side of the UJ, causing vibration and stress to reversebox-gearbox.

Read more here:
http://en.wikipedia.org/wiki/Universal_joint

View User's Profile E-Mail User View All Posts By User U2U Member
Johneturbo

posted on 25/10/10 at 03:02 PM Reply With Quote
Tim, don't know if you can do anything with this pic

Description
Description


So is it ok to have this angle, as long as the sprocket face and diff face are parallel
Description
Description


[Edited on 25/10/10 by Johneturbo]

View User's Profile Visit User's Homepage View All Posts By User U2U Member
TimC

posted on 25/10/10 at 03:21 PM Reply With Quote
quote:
Originally posted by Johneturbo
Tim, don't know if you can do anything with this pic



You won't believe this: my X-ray vision and extra perception module have just both failed. Sorry, I shouldn't be so flippant.

You've not given me much to work with there. What might be best is to measure the distance from the centre of the first UJ to the centre bearing and then measure how far laterally the centre the prop centre bearing mount is from the centre of the output shaft on the motor. This will then give you one side of a triangle and the hypotenuse and geometry will do the rest.

Sorry that doesn't read terribly well, but its not an easy thing to explain.

What is evident is that the face of the prop adapter is not parallel to the chassis tube at the top-front of the footwell and tunnel and is therefore not parallel to the face of the input shaft on the diff. This is a no-no as per the comments above.

[Edited on 25/10/10 by TimC]






View User's Profile View All Posts By User U2U Member
TimC

posted on 25/10/10 at 03:28 PM Reply With Quote
quote:
Originally posted by Johneturbo
So is it ok to have this angle, as long as the sprocket face and diff face are parallel
[Edited on 25/10/10 by Johneturbo]


The angle looks ok. What I'm not clear on is whether its better to reduce the angle on the front half of the prop by misaligning the centre bearing or if it is alway better to have the centre bearing parallel to both the prop adapter and the face of the diff input shaft. Anyone?






View User's Profile View All Posts By User U2U Member
