If you have a Ford Zetec engine and want to hook it up to an ordinary 104-pin EEC-V ecu, you may find the attached a useful starting point.

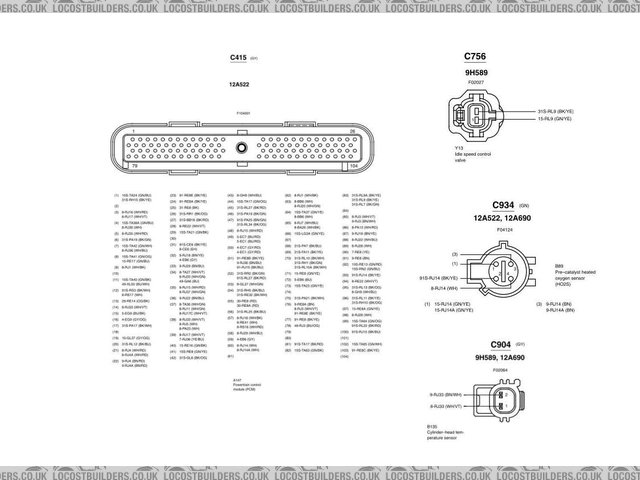

The first picture aims to show the entire engine wiring, in schematic form on a single page. The other 3 are views of the connectors referred to on
This information has been drawn from a number of sources, and cross-referenced for accuracy as far as possible. However, mistakes will always occur.
Where they do, they are mine and mine alone.
The text at the top of the picture is important and must be read, especially the bit about no responsibility being accepted for damage or injury
resulting from its use. If you cannot accept this, you must not use it. I am an amateur and do not profess to have any real expertise in the field
of engine electronics.
The schematic only purports to show how my engine loom has been put together, for my particular ecu/engine combination.
I am grateful to Warren (big_wasa) for constructing the loom on which this post is based, and for being one of the principal sources of
To see the detail clearly, it is probably best to right-click each one and do a ‘save picture as…’
If that doesn't work for you, u2u me with your email address & I'll send you the file in pdf form.
For reasons of access, I've now ditched the idle control valve in favour of a nyloc on the throttle stop to prevent the butterfly from closing
completely when your foot's off the throttle. Seems to work just as well.
