Author: Subject: Swirl Pot Return
ttalps2000

posted on 4/3/20 at 08:26 AM Reply With Quote
Swirl Pot Return

In the process of plumbing in my swirl pot. I am running a returnless system, so all i have coming into the swirl pot is the low pressure pump feed. I am struggling to find a position to put the overflow from the swirl pot back into the tank. However, i am running a Facet cube style pump for the low pressure feed. These pumps are designed for running with carbs, which have a float chamber and shut off the fuel flow when this is full.

So, question is, do i actually need a overflow from the swirl pot back to the tank? I see no issues with just blanking this off and letting the low pressure pump fill the pot up. Only issue could be a air pocket at the top of the swirl pot i guess?

If not, any easy ideas on getting a return connection into the tank? I was going to put it into the fuel sender, however it is too small to do so, so that option is out!

View User's Profile View All Posts By User U2U Member
40inches

posted on 4/3/20 at 09:33 AM Reply With Quote
I ran the return back to the tank breather outlet and made another breather.
As you said the return is to bleed off any air, brake line is big enough, I have a 0.8 mig nozzle in the rubber tube from the swirl pot return.
Description
Description

View User's Profile View All Posts By User U2U Member
voucht

posted on 4/3/20 at 10:44 AM Reply With Quote
Hi,

I would install a return hose anyway, even with a self-interrupting Facet LP fuel pump.

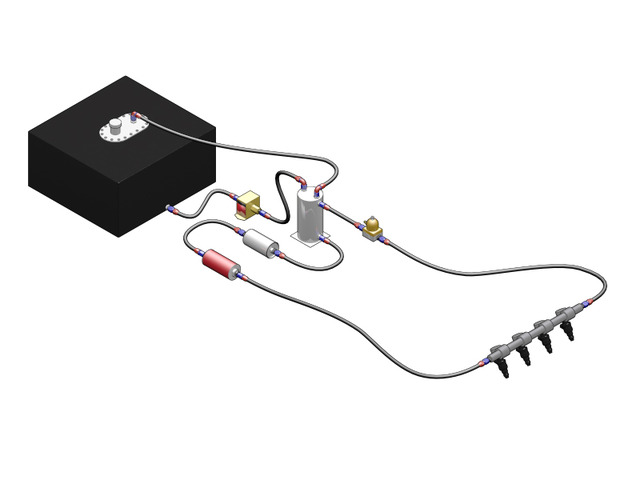

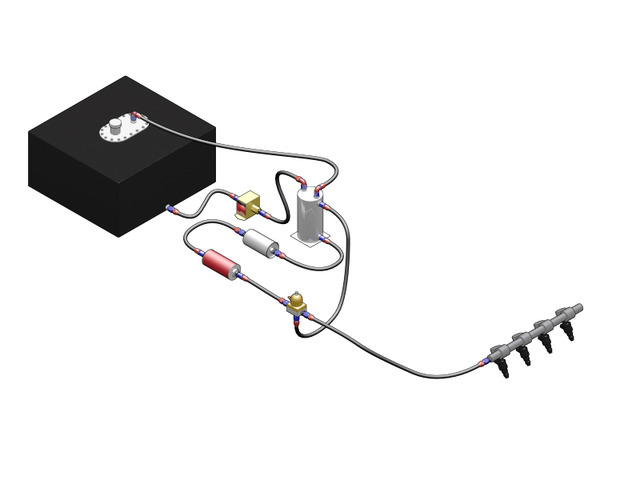

Here are some 3D schematics swirl pot installations I did a few years back when I was working for a company involved in hydraulic circuits for racing cars. The difference between the 2 schematics is if you have a 2 or a 3 ways fuel pressure regulator.

Description
Description


Description
Description


Red cylinder = fuel filter
silver cylinder = high pressure fuel pump
golden cube = low pressure fuel pump
golden dome = fuel pressure regulator.
And I think it is pretty obvious where the swirl pot, the fuel tank and the interjection ramp are on the systematics

Hope that will help





Sylvain
https://vouchtroadster.blogspot.com/
https://cafrazx550.blogspot.com/

View User's Profile Visit User's Homepage View All Posts By User U2U Member
ttalps2000

posted on 4/3/20 at 10:55 AM Reply With Quote
The issue im getting is that i dont really want to drop the tank out and start drilling holes in it to get a fitting put in etc!
View User's Profile View All Posts By User U2U Member
voucht

posted on 4/3/20 at 11:03 AM Reply With Quote
Now I'm not sure I understood your first post. Are you running an injection (high pressure) or carbs (low pressure)?





Sylvain
https://vouchtroadster.blogspot.com/
https://cafrazx550.blogspot.com/

View User's Profile Visit User's Homepage View All Posts By User U2U Member
ttalps2000

posted on 4/3/20 at 11:29 AM Reply With Quote
Injection, high pressure
View User's Profile View All Posts By User U2U Member
indykid

posted on 4/3/20 at 11:38 AM Reply With Quote
quote:
Originally posted by ttalps2000
The issue im getting is that i dont really want to drop the tank out and start drilling holes in it to get a fitting put in etc!


One of these? https://www.parts4aircraft.com/fuel-tank-fitting-c2x9383165

Drill a hole, poke it in. No welding required.

There has to be a reason I've been saving this link all this time...





me? ambivalent? well, yes and no

View User's Profile E-Mail User View All Posts By User U2U Member
SPYDER

posted on 4/3/20 at 12:00 PM Reply With Quote
If you run too large a return from the swirl pot the low pressure pump will run at 100% all the time.
I have plumbed in a similar system to yours on my car. I have a pressure regulator after the LP pump set at around 1 or 2 psi which gives the LP pump something to work against. I also put a restrictor in the tank return line. I ended up at around 1mm IIRC. The LP pump still never actually stops clicking but it is running a lot slower. The possible downside of this is that the swirl pot is slightly pressurised but this hasn't caused any problems for me.

View User's Profile Visit User's Homepage View All Posts By User U2U Member
dhutch

posted on 4/3/20 at 02:53 PM Reply With Quote
quote:
Originally posted by SPYDER
If you run too large a return from the swirl pot the low pressure pump will run at 100% all the time.
Is this a problem? (genuinely dont know)

View User's Profile E-Mail User View All Posts By User U2U Member
SPYDER

posted on 4/3/20 at 05:33 PM Reply With Quote
I don't know if it would be a problem with your pump either. I know that mine made a right racket if left running at full chat.
View User's Profile Visit User's Homepage View All Posts By User U2U Member
rusty nuts

posted on 4/3/20 at 05:35 PM Reply With Quote
quote:
Originally posted by dhutch
quote:
Originally posted by SPYDER
If you run too large a return from the swirl pot the low pressure pump will run at 100% all the time.
Is this a problem? (genuinely dont know)


40 Inches has already suggested a solution in his reply

View User's Profile View All Posts By User U2U Member
SPYDER

posted on 4/3/20 at 08:02 PM Reply With Quote
quote:
Originally posted by rusty nuts
quote:
Originally posted by dhutch
quote:
Originally posted by SPYDER
If you run too large a return from the swirl pot the low pressure pump will run at 100% all the time.
Is this a problem? (genuinely dont know)


40 Inches has already suggested a solution in his reply


...and I agree with him.

View User's Profile Visit User's Homepage View All Posts By User U2U Member
ttalps2000

posted on 13/3/20 at 10:53 AM Reply With Quote
used one of these in the end: https://www.parts4aircraft.com/fuel-tank-fitting-c2x9383165

Seems to work well and installed within 10 mins! Just hope it doesnt leak now!

Also added a 0.8mm mig tip to add some back pressure etc

View User's Profile View All Posts By User U2U Member
Mr Whippy

posted on 13/3/20 at 12:05 PM Reply With Quote
quote:
Originally posted by ttalps2000
used one of these in the end: https://www.parts4aircraft.com/fuel-tank-fitting-c2x9383165

Seems to work well and installed within 10 mins! Just hope it doesnt leak now!

Also added a 0.8mm mig tip to add some back pressure etc


What about swarf from drilling the hole?

View User's Profile Visit User's Homepage View All Posts By User U2U Member   Mr+Whippy 's Aim
ttalps2000

posted on 13/3/20 at 12:09 PM Reply With Quote
coated the drill in grease and caught the majority of it all. Pump and tank has filters to catch any small bits
View User's Profile View All Posts By User U2U Member
40inches

posted on 13/3/20 at 12:14 PM Reply With Quote
quote:
Originally posted by ttalps2000
coated the drill in grease and caught the majority of it all. Pump and tank has filters to catch any small bits


That's what I did, using a step drill. I used the Aircraft fitting for the breather and used the welded in breather for the return.
Both are on top of the tank so not submerged in fuel.

[Edited on 13-3-20 by 40inches]
