lsdweb
|
| posted on 16/1/15 at 05:57 PM |
|
|
More progress :-)

Bare chassis
|
|
|
|
|
peter030371
|
| posted on 17/1/15 at 01:55 PM |
|
|
Looks like you have to odd spot of rust on that  Bet it cleans up fine though
|
|
|
lsdweb
|
| posted on 17/1/15 at 05:54 PM |
|
|
It's not that bad really! The black stuff is where the previous owner has covered where the powder coat had come off.
It's off to be blasted on Monday :-)
quote:
Originally posted by peter030371
Looks like you have to odd spot of rust on that Bet it cleans up fine though
|
|
|
lsdweb
|
| posted on 28/1/15 at 04:34 PM |
|
|
Picked it up form the blasters today.
It's now at (Endaf) Owens Fabrications for some chassis mods, side impact bar and to redo some of the original welding!

Stripped
|
|
|
peter030371
|
| posted on 28/1/15 at 04:51 PM |
|
|
That looks better already
|
|
|
lsdweb
|
| posted on 10/2/15 at 03:32 PM |
|
|
Trying to do as much as I can when the car isn't here!
ECU wiring harness finished

Description
Dash all wired and tested (had to make up a new harness as the original had been chopped short

Description
|
|
|
alfas
|
| posted on 13/2/15 at 06:44 PM |
|
|
and now galvanizing ...that would be the best and neatest rust-protection.....
|
|
|
lsdweb
|
| posted on 4/3/15 at 07:16 PM |
|
|
Chassis mods almost finished! Lots of cage enhancements, engine mounts done, new pedal box and exhaust sorted. Some more strengthening to go in at
the front and some of the original welds to be redone.

Description

Description

Description

Description

Description

Description

Description
Wyn
|
|
|
Rich J
|
| posted on 4/3/15 at 07:37 PM |
|
|
Looks good Wyn Have you thought about a prop catcher while it's being altered??
|
|
|
CRAIGR
|
| posted on 4/3/15 at 07:54 PM |
|
|
Looking good that Wyn
Perhaps I should keep mine
|
|
|
lsdweb
|
| posted on 4/3/15 at 08:18 PM |
|
|
It's on my list of things to do Rich- it'll go back to Endaf's once I've thrown it back together for final brackets, fuel tank
etc so we'll do the prop catcher then. I think the gearbox is further back than it was originally!
quote:
Originally posted by Rich J
Looks good Wyn Have you thought about a prop catcher while it's being altered??
|
|
|
bi22le
|
| posted on 4/3/15 at 08:48 PM |
|
|
If you accodently make an extra set of prop catchers while your at it ill take them off of your hands!?!
Track days ARE the best thing since sliced bread, until I get a supercharger that is!
Please read my ring story:
http://www.locostbuilders.co.uk/forum/13/viewthread.php?tid=139152&page=1
Me doing a sub 56sec lap around Brands Indy. I need a geo set up! http://www.youtube.com/watch?v=EHksfvIGB3I
|
|
|
lsdweb
|
| posted on 6/6/15 at 04:07 PM |
|
|
Some more progress at last! Chassis mods are now finished and the chassis is in the powder coaters
Rad mounts finished.

Description
Prop catchers and fuel tank brackets in.

Description
Front ARB fitted

Description
Rad brackets and ARB

Description
TimC has sort of set me a challenge so I'd better pull my finger out!
|
|
|
TimC
|
| posted on 6/6/15 at 06:16 PM |
|
|
Can't wait to see it!
|
|
|
lsdweb
|
| posted on 6/6/15 at 09:36 PM |
|
|
quote:
Originally posted by TimC
Can't wait to see it!
I'm looking forward to seeing it powder coated Tim. He's made a template for the fuel tank and welded the mounting lugs to the chassis so
that should be easy enough to sort out. Hopefully we managed to get the rest of the welding sorted!
I'm probably going to get the ali panels powder coated too. The sides are new but the floor and internal panels should clean up ok hopefully
before coating.
|
|
|
TimC
|
| posted on 7/6/15 at 08:04 AM |
|
|
What colour powdercoat are you going with.
Just looking again at your cage - it looks serious! You're obviously planning to roll it!
[Edited on 7/6/15 by TimC]
|
|
|
lsdweb
|
| posted on 7/6/15 at 09:17 AM |
|
|
Black powder coat - plain and simple!
And yes there's a lot of effort gone into the cage but I'm not planning on testing it!!
Description
|
|
|
lsdweb
|
| posted on 4/7/15 at 07:07 PM |
|
|

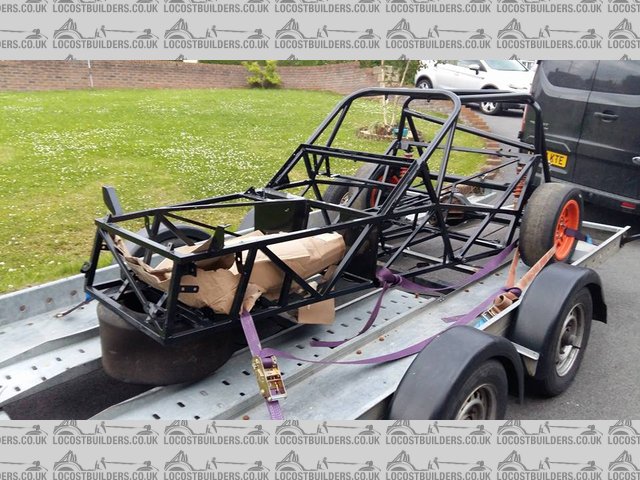

Powder coated :-)
Now time to rebuild it !! I've just realised I've not powder coated the floor panels yet so need to get those sorted before doing anything
else really.

Description
|
|
|
Rich J
|
| posted on 4/7/15 at 07:43 PM |
|
|
Happy days ahead
|
|
|
lsdweb
|
| posted on 4/7/15 at 10:29 PM |
|
|
Cheers Rich
If I can find some time away from the business I might get it finished! !
|
|
|
lsdweb
|
| posted on 5/8/15 at 09:45 PM |
|
|
Some progress.
Floor panels ready to go on but my Sikaflex on the shelf was rock hard! I decided to panel the bottom of the tunnel too - these panels aren't
powder coated but they can't be seen anyway.
The gap in the paneling is for access to the gearbox mounting bolts. I may try and find a way to cover this area.

Description
[Edited on 5/8/15 by lsdweb]
|
|
|
TimC
|
| posted on 4/9/15 at 02:18 PM |
|
|
It's been a month...
|
|
|
lsdweb
|
| posted on 5/9/15 at 04:14 PM |
|
|
quote:
Originally posted by TimC
It's been a month...
I've been on holidays, busy working, building decking at home and lots of other stuff.
October won't happen unfortunately so I'm going to plan to get it well sorted over the winter.....
|
|
|
